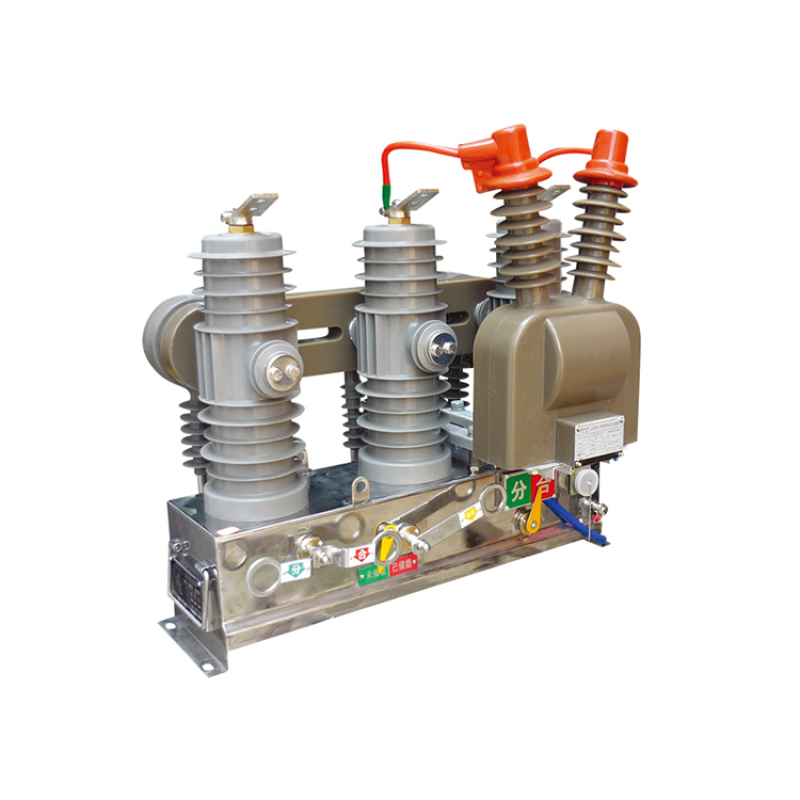

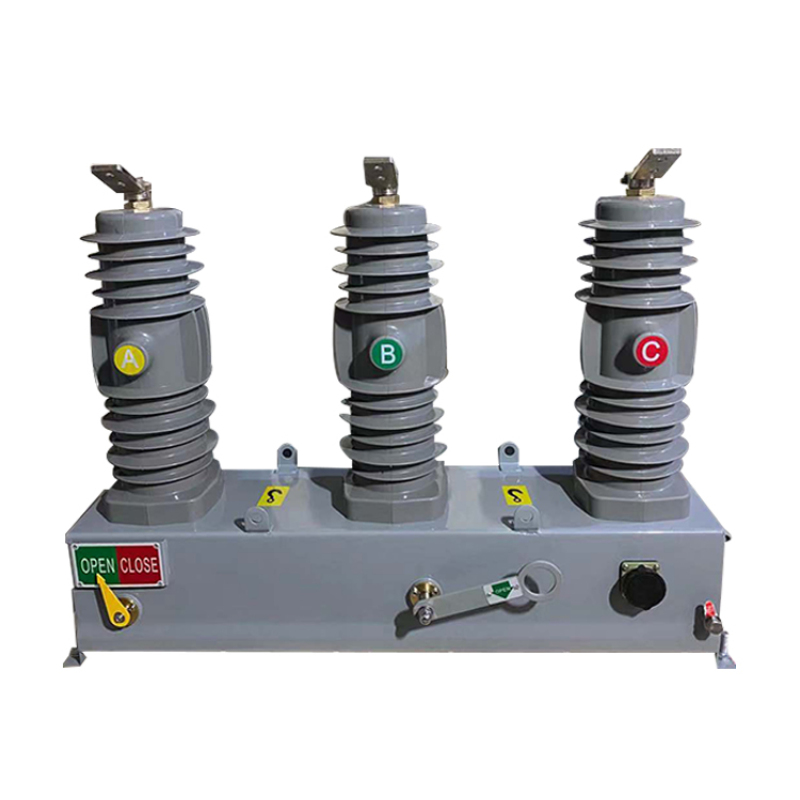

Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker

Message

$3,500.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker
Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker
Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker
Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker
Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker
Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker

Permanent Magnet Mechanism High Voltage 12KV 3 Phase Circuit Breaker

  • Item No.ZW43-12
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 3500.00  / Piece
$ 35,000.00
You save  $  -35,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberZW43-12
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeVacuum Circuit Breaker
Product NameAC Vacuum Circuit Breaker
altitude≤2000m
ambient temperature-40°C-+45°C
Wind speed34m/s
Product Description




ZW43-12 model outdoor AC vacuum circuit breaker is used to make and break load current, overload current and short-circuit current in12kV,50/60Hz power system. It is applicable for substations, industry and mining, urban and rural electricity power networks, especially applicable in occasions with frequent operation and automatic power distribution network. It accords with the standard of IEC62271-100 & GB1984-2014: AC high voltage circuit breaker, IEC60694 &GB/T1 1022: HV general technical requirement of switch and control apparatus





Basic equipments:

1.Current transformer protection poles 2 pieces.

2.Permanent magnet operation power supply.



Optional equipments:

1. Current transformer, metering and protection poles 2 pieces for each,75/5.

2. Outer voltage transformer 2 pieces (for control power supply and metering).

3. Reclosing contrllr and series FTU and RTU.

4. Disconnect blade.





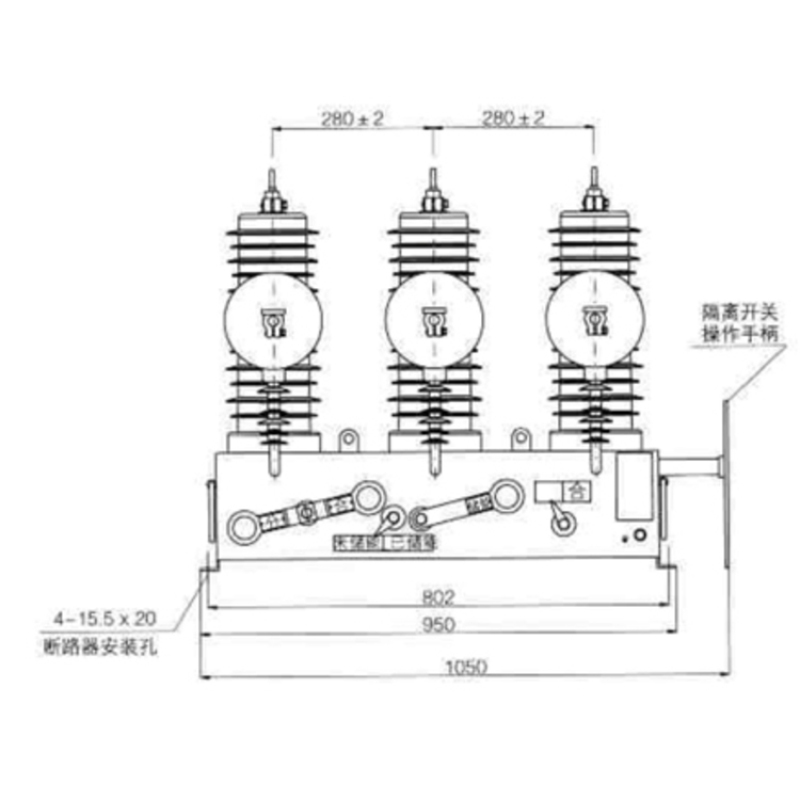

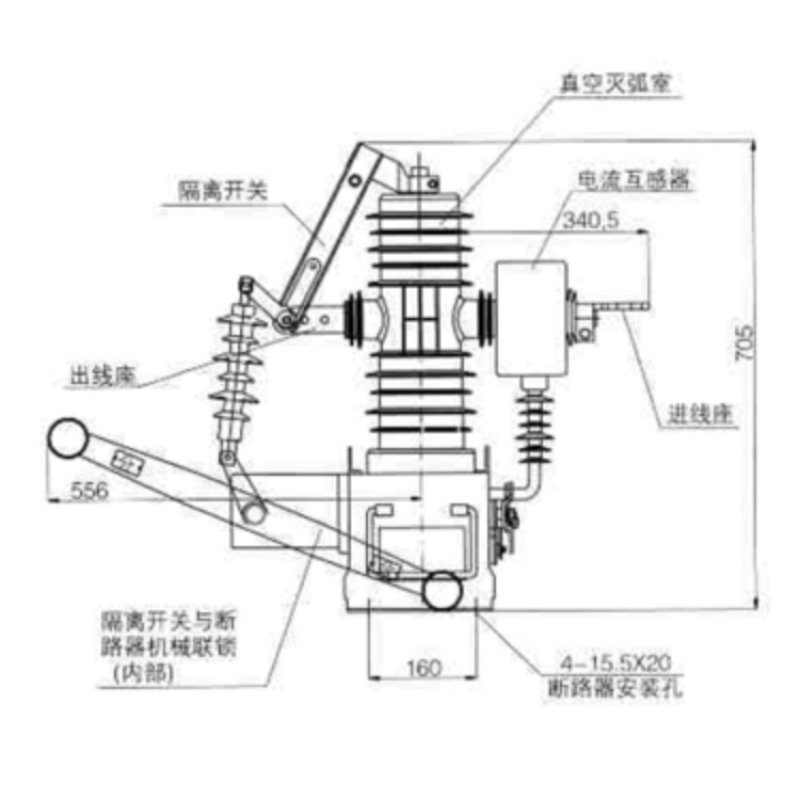

Model description


 Technical Parameter

NameUnitData
Rated voltagekV12

Rated

insulating

level

1min P.F withstand voltage

(phase to phase, to earth; across open contacts)

dry42/48
wet34

Lightning impulse withstand voltage peak

(phase to phase, to earth;)

75

Lightning impulse withstand voltage peak

( across open contacts )

85
Rated frequencyHz50
Rated currentA630, 1250
Rated short-time withstand currentKA/4S 20,25
Rated short-circuit breaking currentKA 20,25
Rated short-circuit making current 50,63
Rated peak withstand current(peak) 50,63
Rated operating sequence/ O-0.3s-CO-180s-CO
Breaking time of rated short-circuit breaking currentTimes 30
Mechanical duration 30000,10000
Abrasions thickNess of contactsmm 3
Net weightkf 70


Product feature

1. Mini vacuum arc extinguish

High reliability; small volume; long life time; fixed inside the epoxide resin, But also to use the spring operating mechanism.



2. Epoxide resin sealing

Anti-ozone, anti-ultraviolet; It is firm, light and convenience for transport.



3. Permanent magnet mechanism

Small volume, reliable performance, non-maintenance.



4. Manual breaking

Improve the reliability; It can operate under the urgent condition.



5. Direction tester

It is mounted on the linkAge axial to check the opening and closing direction.



6. Switch case

Aluminum- aloy material, anti-rust steel and armor plate.

Standard

 IEC62271-100 & GB1984-2014: AC high voltage circuit breaker, IEC60694 &GB/T1 1022: HV general technical requirement of switch and control apparatus

Ambient condition

1. Altitude: ≤ 2000m

2. Ambient temperature: -40°C~+45°C

3. Earthquake intensity: 8 degree;

4. Ice thickNess: 10mm;

5. Wind speed: 34m/s (air pressure 700Pa).
