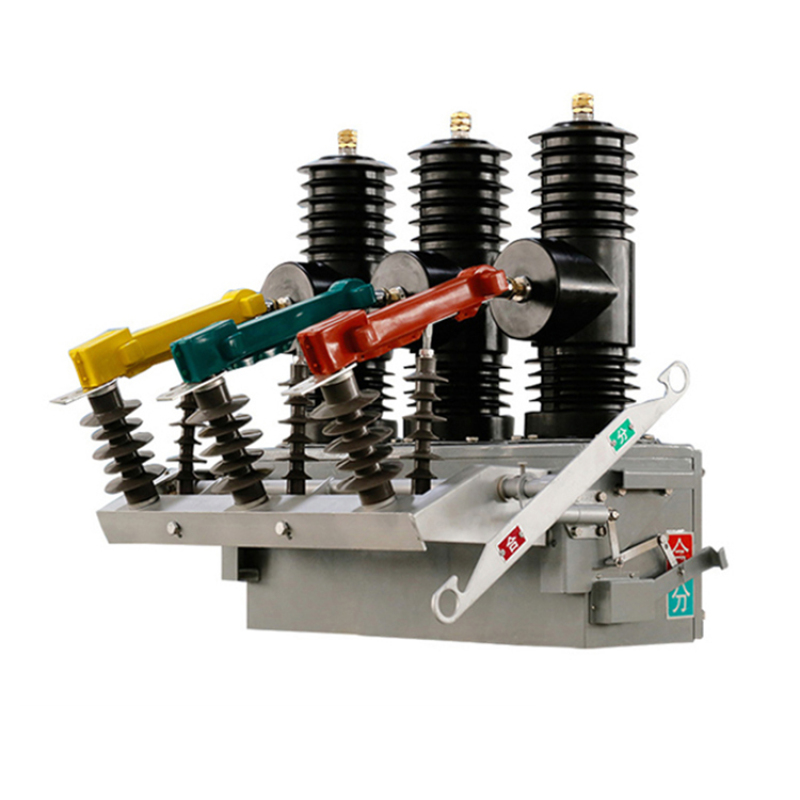

Permanent Magnet High Voltage Vacuum Auto Control Circuit Breaker
Permanent Magnet High Voltage Vacuum Auto Control Circuit Breaker
Permanent Magnet High Voltage Vacuum Auto Control Circuit Breaker

Permanent Magnet High Voltage Vacuum Auto Control Circuit Breaker

  • Item No.AB-3S
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 3500.00  / Piece
$ 35,000.00
You save  $  -35,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberAB-3S
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeCircuit Breaker
Product NameVoltage Permanent Magnet Circuit Breaker
ambient temperature-40°C-+60°C
Operating humidity0-95%
Product Description




       3S-12 series of permanent magnet outdoor vacum circuit breaker is the Company's consolidated foreign advanced technology, with a new design concept, the use of high-tech means, the latest development of a new generation of column vacuum circuit breakers. The product can be used as the main transformer 10kV Substation 35kV switch outlet, but also as a distribution network of column switch, and this combined with the company's controller can faciltate the realization of control, protection, measurement, communication, is to achieve preferred equipment distribution network automation and miniaturization substation.

       Main features: Magnetic actuation (permanent magnet) institutions so that a significant reduction in parts, greatly reducing the switch on the power, stable and reliable, no regular maintenance; imported outdoor epoxy resin as outer insulation material, light weight, long life more than 15 years, the weather is good, no oil, no SF6, comply with environmental requirements; action time is short, fast cuting fault protection with the convenience and flxibility; use solar or CT as a power, no external power supply electric operation can be realized; use special remote control enables remote operation without lever stop transmission operation can be carried out; the selection of high-voltage isolation switch integrated design, compact structure, convenient insallation and maintenance.










Model description


 Technical Parameter

NameUnitData
Rated voltagekV12
Rated currentA630/1250
Rated power frequencyHz50
Rated short-circuit breaking currentkA20
Rated withstand current(peak)kA50
Rated short-time withstand current(4s)kA20
Rated short-circuit making current(peak)kA50
Rated short-circuit breaking timeSecondary30
Mechanical lifeSecondary10000
Power frequency withstand voltage (1min)kV42
Lightning impulse withstand voltage (peak)kV75
Main circuit resistanceμΩ≤120
Current sensor changes 30~1250/5


Ambient condition

1. Working temperature: -40°C~ + 60 °C

2. Operating humidity: 0-95%

3. The working environment of solar radiation:≤1.1kW \1 m

4. The wind speed does not exceed 35m/s (equivalent to 700pa on the cylindrical surface)

5. Pollution Level: IV grade

6. ice thickNess: ≤10mm

7. seismic intensity:≤8°
