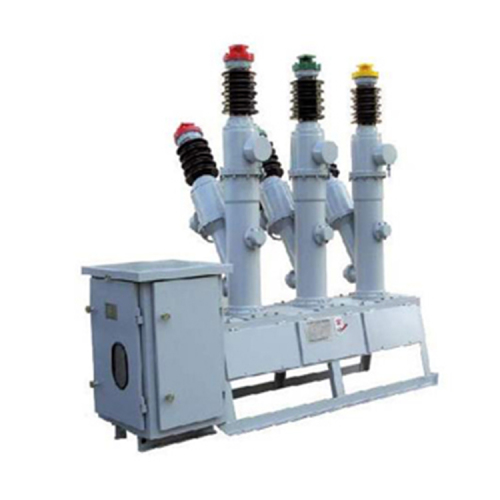

Outdoor 3 Phase 40.5KV Alloy SF6 High Voltage Circuit Breaker

Message

$7,000.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

Outdoor 3 Phase 40.5KV Alloy SF6 High Voltage Circuit Breaker

Outdoor 3 Phase 40.5KV Alloy SF6 High Voltage Circuit Breaker

  • Item No.LW8-40.5
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 7000.00  / Piece
$ 70,000.00
You save  $  -70,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberLW8-40.5
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeCircuit Breaker
Product NameVoltage AC SF6 Circuit Breaker
Product Description




 The LW8-40.5AC HV SF6 breaker is kind of 3 phase AC 50HZ outdoor type breakers. The gas of the SF6 is employed as the arc-extinguishing medium and the dielectric material. It uses the structure of pneumatic arc-extinguishing chamber, and the breaking performance is excellent. It can be widely used in the electrical system whose rated voltage is 40.5kV to control the rated current and short-circuit current, connect the breaker and cut the current in capacitor banks. The current transformers inside are used for measuring and protecting the breaker. The LW8-40.5 breaker is the regenerate type of oil type breaker.

Model description

No

description

parameters

1

Rated voltage(kV)

40.5

2

Rated current(A)

2000

3

Rated short-circuit breaking current(kA)

31.5

4

Rated out-of-step breaking current(kA)

7.9

5

Rated opening and closing single capacitor bank current(A)

400

6

Rated operating sequence

O-0.3s-CO-180s-CO

7

SF6 gas rated inflation pressure(MPa)

0.45

8

Opening time(ms)

≤60

9

Closing time(ms)

≤100

10

Rigid speed(m/s)

3.4

11

Closing speed(m/s)

3.2

12

Circuit breaker weight(kg)

1400







Characteristic of structure

1. The breaker has the characteristics of small, outdoor type and with the console pot structure. It can match with CT14 spring operation mechanism. The spring operation mechanism associates with the main body, so the nstallation and debugging are convenient. Also it can be operated frequently and the mechanical life is not less than 3000times.

2. The breaker uses pneumatic arc-extinguish chamber, so the breaking performance is excellent. The 40kA accumulative breaking times can reach to 12.

3. The seal performance is reliable. The breaker uses imported sealed rubber insert. The dynamic seal uses structure of V shape grommet with spring pressure. The secondary terminal block is offered by the manufacturer as a set with the breaker to make sure that the annual leak rate of SF6 < 0.5%.

4. The iron core of the inner curent transformer is made of materials with the performance of crystallite (alloy) high conduction magnetic. So the accuracy class can reach up to 0.2 or 0.2s. 12pieces of current transformers can be used inside as the clients' requirement. And it will not be-burn when switch zero load for 50kms.

More Products

Company Information


Our Services

_10

Packaging & Shipping

_11

Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.

Business TypeTrading CompanyCountry / RegionZhejiang, China
Main ProductsCable Accessories,Surge Arresters,Fuse Cutouts,Isolates Switches,ReclosersTotal Employees5 - 10 People
Total Annual RevenueconfidentialYear Established2017
CertificationsISO9001Product Certifications
PatentsTrademarks
Main MarketsAfrica 46%
South America 30%
Domestic Market 10%
Ningbo Jecsany Electrical Equipment Co., Ltd. (JECSANY) is one of the global processional electrical apparatus manufacturer in China, covering various electrical fields and engaged in the widest range of electrical power components and parts including Hardware Fittings, Clamps, Connectors, Terminals,Cable Accessories, Insulators, Surge Arresters, Cutouts, Isolates Switches, Transformer, Electrical Tools, series control transformer, and all kinds of the regulator and so on.

JECSANY has been thrived on supplying the products according to the international standard such as 61952, IEC 61109, IEC 60099-4, IEC 60282-2, etc. With scientific administration, professional engineers, highly trained technicians and skilled workers, JECSANY is capable to produce more than 2 million units of the main electrics in best quality annually, almost all of its products have been made for overseas markets and well sold to USA, South Africa, Vietnam, Korea, South America, South Asia etc. over 50 countries worldwide. Some of its products have already been granted IEC certificates and have won high reputation around world market.

In order to meet new challenge and satisfy increased customers' demand on our products and quality, JECSANY will consistently keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual .
