New Generation Indoor Embedded High Voltage Vacuum AC Circuit Breaker

Message

$1,900.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

New Generation Indoor Embedded High Voltage Vacuum AC Circuit Breaker
New Generation Indoor Embedded High Voltage Vacuum AC Circuit Breaker
New Generation Indoor Embedded High Voltage Vacuum AC Circuit Breaker
New Generation Indoor Embedded High Voltage Vacuum AC Circuit Breaker

New Generation Indoor Embedded High Voltage Vacuum AC Circuit Breaker

  • Item No.VF(R)-12
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 1900.00  / Piece
$ 19,000.00
You save  $  -19,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberVF(R)-12
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeVacuum Circuit Breaker
Product NameVacuum Circuit Breaker
altitude≤1000m
ambient temperature-40°C-+40°C
Product Description

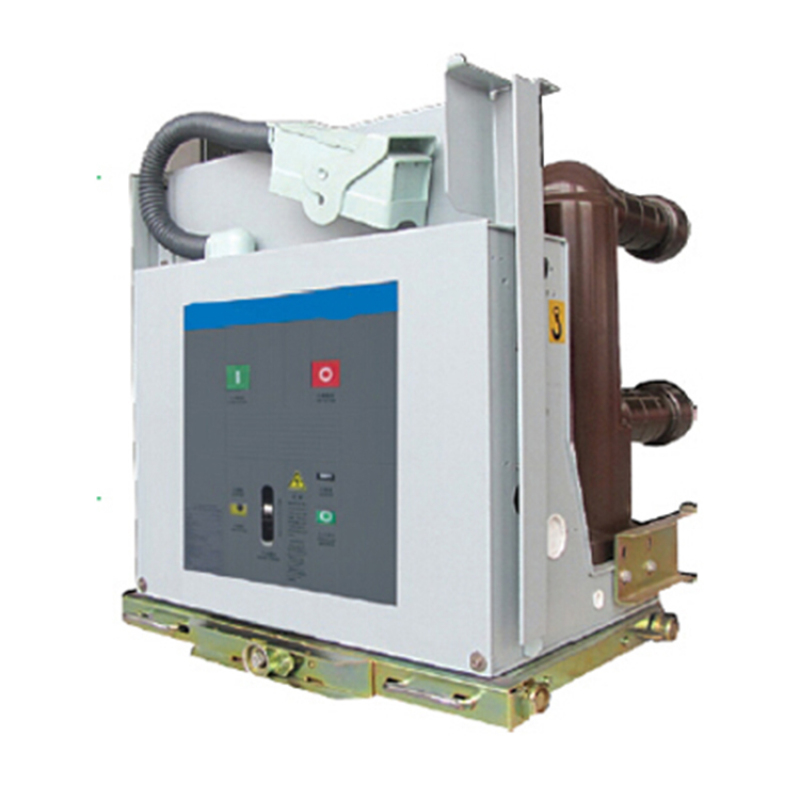

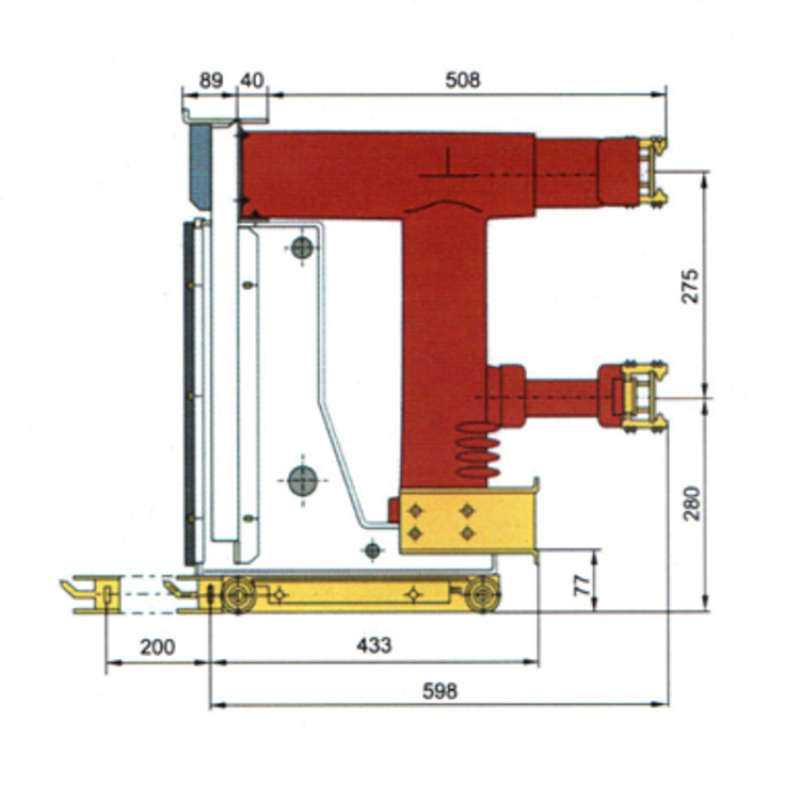

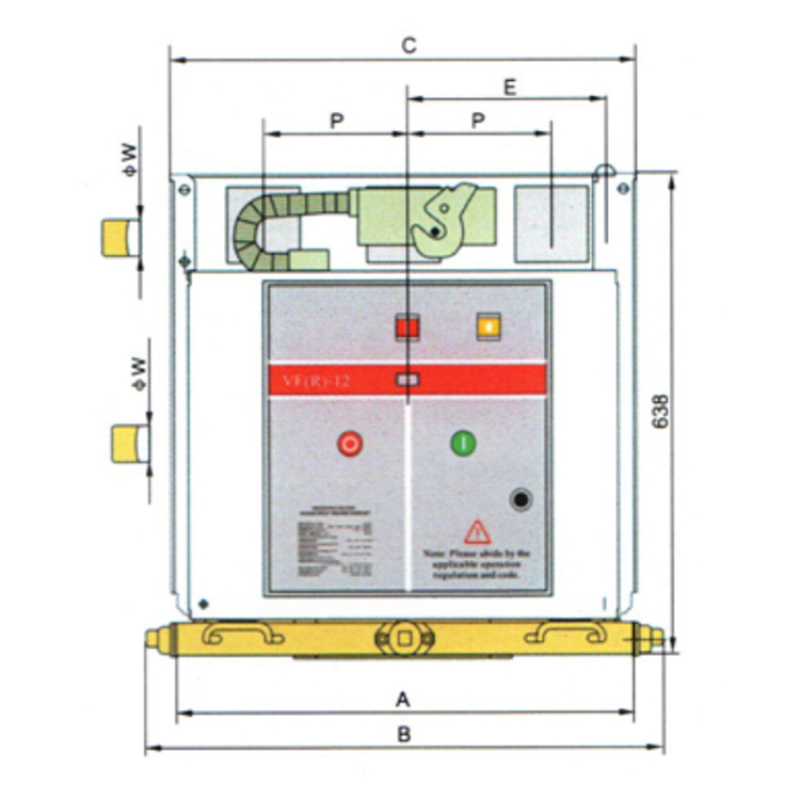

VF(R)-12 indoor embedded high-voltage alternating-current vacuum load switch-fuse combination (“vacuum load switch" )is a new generation vacuum switching equipment developed based on unique design ideas to meet the market demand. It is widely used for indoor armored air-insulated switch cabinets. In normal conditions, it can operate within its technical parameters in any grid of the specified voltage level safely and stably.


 Technical Parameter

ItemUnitReference value

VF-12/T630-20

Vacuum load

switch

VFR-12/T125-50

Vacuum load

switch-fuse

combination

VFH-12/T630-25

High breaking

capacity vacuum

switch

VFHR-12/T125-50

High breaking

capacity vacuum

switch-fuse

combination

Rated voltage kV12121212
 Rated insulation levelLightning impuse withstand voltagekV75757575
1min power-frequency withstand voltagekV42424242
Rated frequencyHz50/6050/6050/6050/60
Rated currentA630125(fuse)630125(fuse)

Rated short-circuit

breaking current

kA-50(fuse) 25 25

Rated short- circuit

making current (peak value)

kA50 - 63 -

Rated short-time

withstand current

kA20 - 25 -

Rated withstand current

(peak value)

 kA 50 - 63 -

 Rated breaking current of

cable during charge

 A 16 - - -

 Rated breaking current of

no-load transformer

 kVA 1250 - 1250 -

 Rated breaking

take-over current

 A - 3150 - 3150

 Breaking times of

the rated short-circuit current

 Times
 Mechanical life  M2 level M2 level M2 level M2 level
 Weight kg    125

Transformer capacity and fuse selection

1.The fuse can cut off a large short-circuit current in less than 10 ms and its breaking current can be up to 50KA. Thus, it can protect the transformer most efectively.

2.In terms of match between the transformer and the fuse (Table 1), the potential surge current of the fuse must be considered. Thus, fusing current of the fuse must be 1.6 times of the rated value; designer must consider possible fluctuations of other parameters of the grid and reserve margins for them. If a fuse is selected for high-voltage motor protection, designer must consider frequency of start of the high-voltage motor because frequent starts of the high-voltage motor will result in the fuse's failure when timely cooling is not available.



Fuse selection

Primary voltage of

the transformer(kV)

Capacity of

the transformer(kVA)

Model of the fuse

Rated current

of the fuse(A)

Model for

the domestic market

Model for

international market

6.6200XRNT-1012kV BDGHC31.5
25040
300/31550
40012kV BDGHC63
50080
63090


Standard

1.GB 3804-2004 High-voltage load alternating-current switches for rated voltage above 3.6 kV and less than 40.5 kV

2.GB 16926-2009 High-voltage load alternating- current switch-fuse combinations



Operating conditions

1. Ambient temperature: - 40℃-+40℃ (below 35℃ within 24 hours)

2. Relative humidity:≤95% (daily average) or≤90% (monthly average)

3.Altitude: ≤1000m

More Products



Company Information


Our Services

_10

Packaging & Shipping

1

FAQ

2Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.

Business TypeTrading CompanyCountry / RegionZhejiang, China
Main ProductsCable Accessories,Surge Arresters,Fuse Cutouts,Isolates Switches,ReclosersTotal Employees5 - 10 People
Total Annual RevenueconfidentialYear Established2017
CertificationsISO9001Product Certifications
PatentsTrademarks
Main MarketsAfrica 46%
South America 30%
Domestic Market 10%
Ningbo Jecsany Electrical Equipment Co., Ltd. (JECSANY) is one of the global processional electrical apparatus manufacturer in China, covering various electrical fields and engaged in the widest range of electrical power components and parts including Hardware Fittings, Clamps, Connectors, Terminals,Cable Accessories, Insulators, Surge Arresters, Cutouts, Isolates Switches, Transformer, Electrical Tools, series control transformer, and all kinds of the regulator and so on.

JECSANY has been thrived on supplying the products according to the international standard such as 61952, IEC 61109, IEC 60099-4, IEC 60282-2, etc. With scientific administration, professional engineers, highly trained technicians and skilled workers, JECSANY is capable to produce more than 2 million units of the main electrics in best quality annually, almost all of its products have been made for overseas markets and well sold to USA, South Africa, Vietnam, Korea, South America, South Asia etc. over 50 countries worldwide. Some of its products have already been granted IEC certificates and have won high reputation around world market.

In order to meet new challenge and satisfy increased customers' demand on our products and quality, JECSANY will consistently keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual .
