Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant

Message

$6,000.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

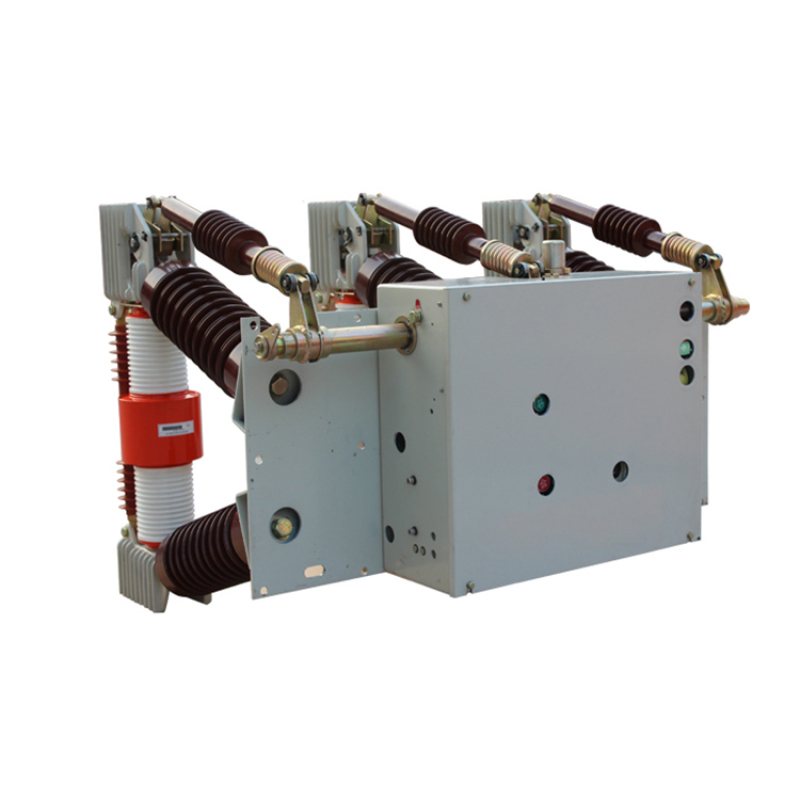

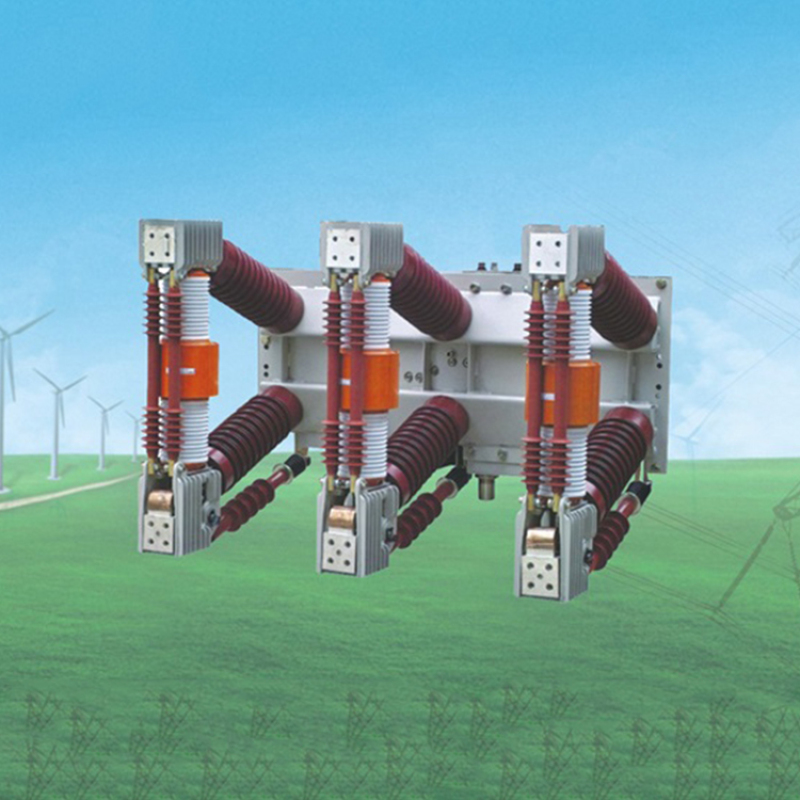

Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant
Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant
Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant
Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant
Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant
Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant
Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant

Indoor 3 Phase High Voltage Vacuum Circuit Breaker In Power Plant

  • Item No.ZN12-12(40.5)
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 6000.00  / Piece
$ 60,000.00
You save  $  -60,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberZN12-12(40.5)
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeCircuit Breaker
Product NameVacuum Circuit Breaker
altitude≤1000m
ambient temperature-30°C-+40°C
Product Description




      ZN12- 12 (40.5) (ZN68) series vacuum circuit breaker rated voltage of 12 (40.5 kV, three-phase AC 50Hz indoor HV switchgear is introduction of Germany's Siemens technology manufacturing products.

      The circuit device has the advantages of simple structure strong breaking capacity, long service life, operating a full-featured, no explosion danger, easy maintenance for in power plant, substation and tr ansmission and distribution system control and protection switch, especially to disconnect the important load and frequent operation places. This product conforms to GB 1984- 89 "high votage circuit breaker" standard.

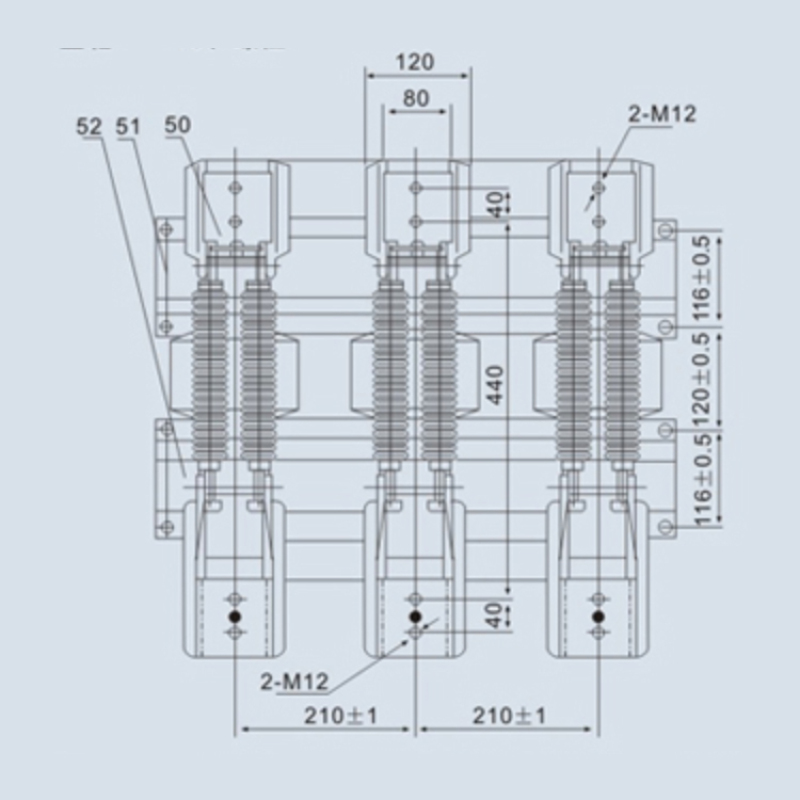

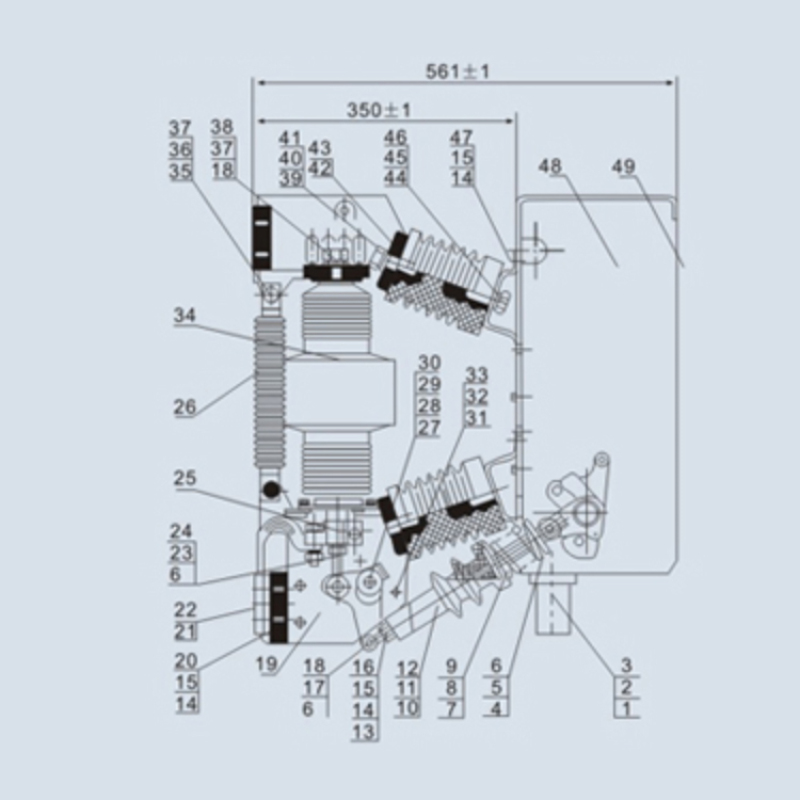

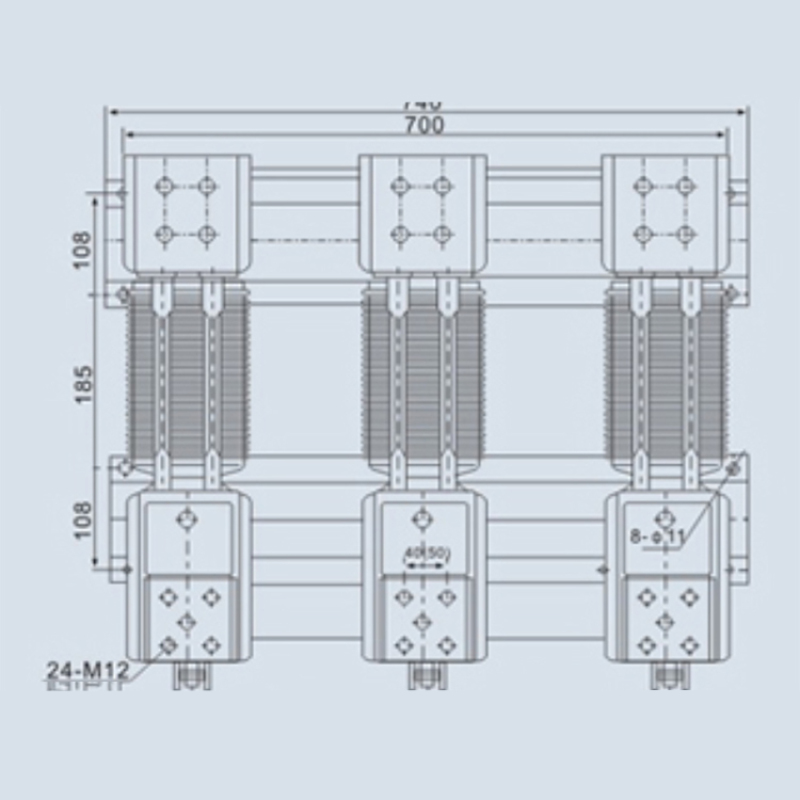

Overall dimension


Model description


 Technical Parameter



ItemUnitsParameters
Rated voltageKV12121240.540.5
Rated currentA12501600200016002000
Rated short- circuit break currentKV25/31.531.531.52531.5
Dynamic stable current (peak value)KA63/8080806380
4S thermal stable current (3S 50kA)KA25/31.531.531.52531.5
Rated short- circuit current (peak)KA63/8080806380
Rated short circuit currenttimes5020
table operation sequence O-0.3s-CO- 180s-CO


Ambient condition

1. Altitude:≤1000m;

2. Ambient temperature: -30℃- +40℃;

3. Earthquake does not exceed degree 8;

4. Relative humidity: daily average value is not greater than 95%, monthly average is not greater than 90%;

5. The surrounding air is not corrosive and flammable gas, steam and other significant plluion;
