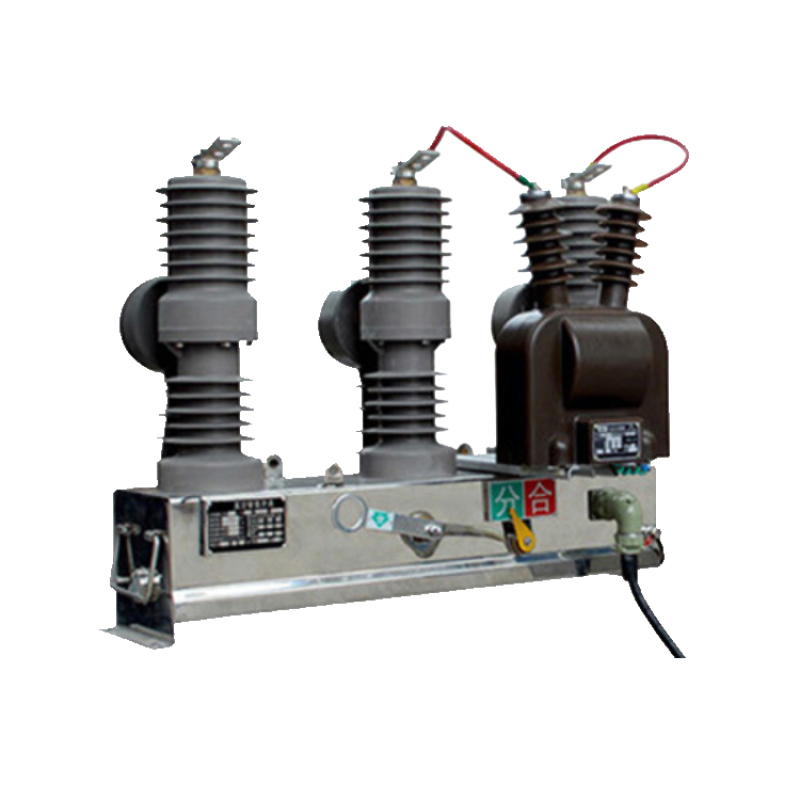

High Voltage Permanent Magnet 12KV Mini Auto Circuit Breaker

Message

$2,500.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

High Voltage  Permanent Magnet 12KV Mini Auto Circuit Breaker
High Voltage  Permanent Magnet 12KV Mini Auto Circuit Breaker
High Voltage  Permanent Magnet 12KV Mini Auto Circuit Breaker
High Voltage  Permanent Magnet 12KV Mini Auto Circuit Breaker
High Voltage  Permanent Magnet 12KV Mini Auto Circuit Breaker
High Voltage  Permanent Magnet 12KV Mini Auto Circuit Breaker

High Voltage Permanent Magnet 12KV Mini Auto Circuit Breaker

  • Item No.ZW32-12M
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 2500.00  / Piece
$ 25,000.00
You save  $  -25,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN
Brand NameJecsany
Model NumberZW32-12M
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeCircuit Breaker
Product NameVoltage Permanent Magnet Circuit Breaker
altitude≤2000m
ambient temperature-40°C-+45°C
Wind speed34m/s
Ambient pllutionIV


         ZW32M-12 type outdoor high voltage vacuum circuit breaker is rated voltage 12kv, three-phase AC 50Hz outdoor distribution equipment,which is mainly used for breaking, closing power system load current, overload current, short-circuit current. For substation and industrial and mining enterprises distribution system for the protection and control of the role and place of rural power grids frequent operation.

        The circuit breaker has small size, light weight, anti-condensation, maintenance-free characteristics, can adapt to poor weather conditions and dity environments.

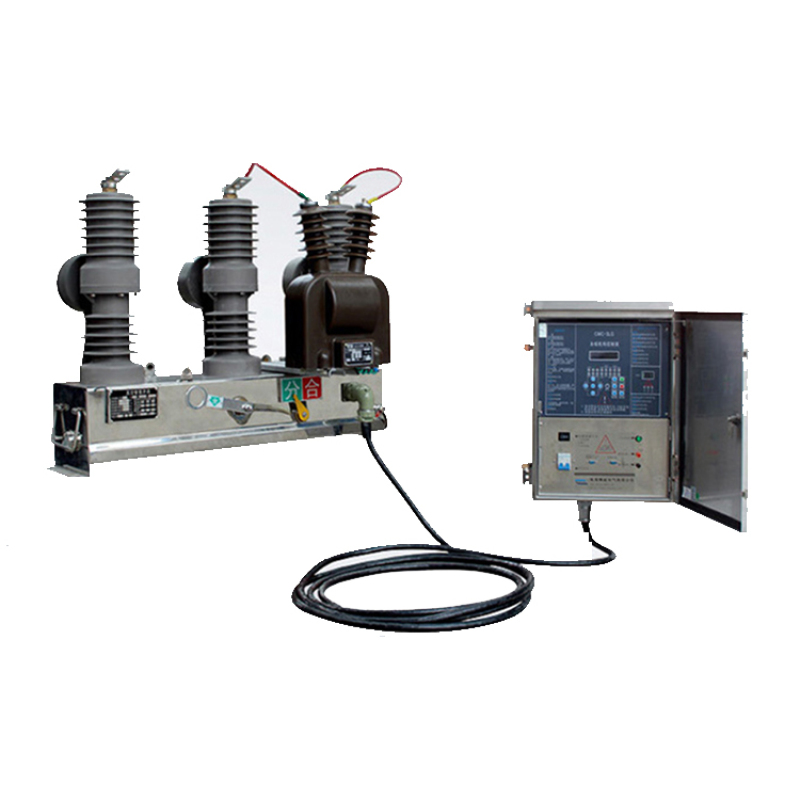

        The models with permanent magnet operating mechanism operates; since the permanent action energy operating mechanism provided by a permanent magnet, the switch quickly to keep the points off position, a small number of mechanical parts, mechanical transmission chain is short, thus greatly improving the switch rlibility and mechanical life.

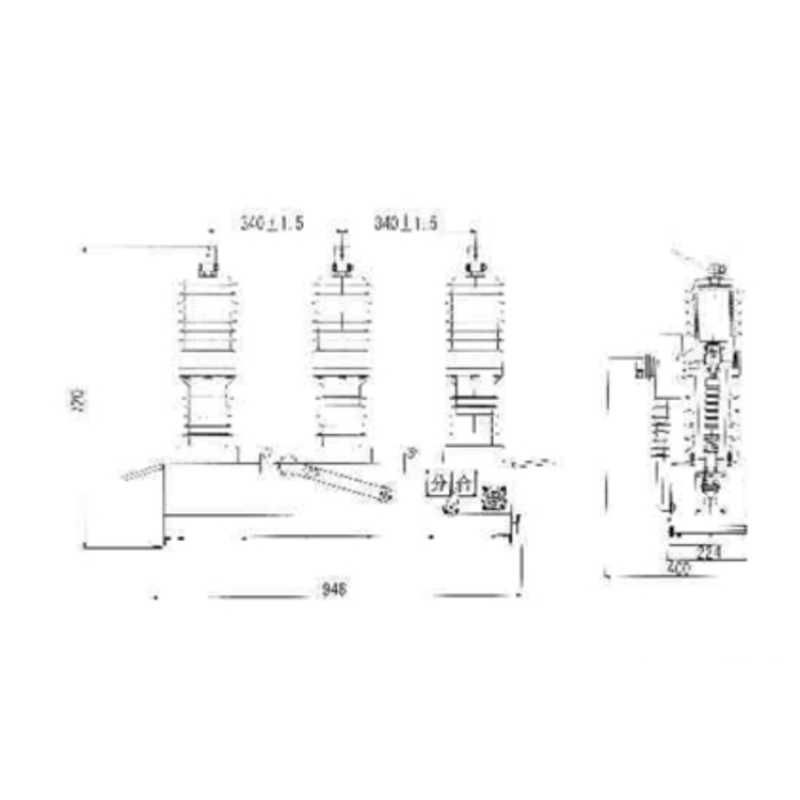

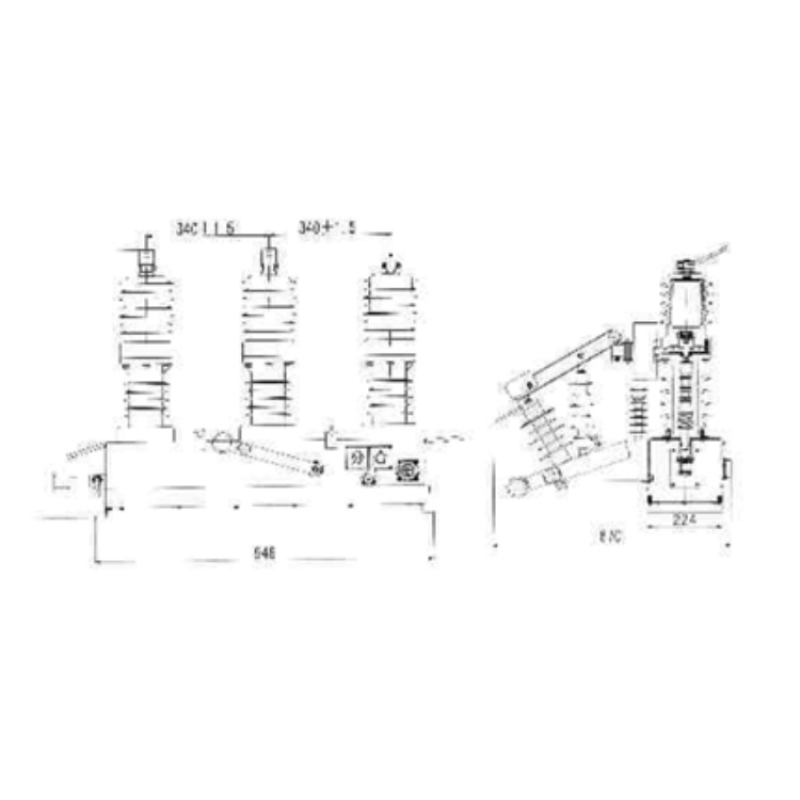

Model description


 Technical Parameter

NameUnitData
Rated voltage KV 12
Rated power frequency Hz50
Rated current KA 630/1250
Rated short-circuit breaking currentKA  20/25
Rated withstand current(peak)KA  50/63
4s Rated short-time withstand current(4s)KA  20/25
Rated short-circuit making current(peak)KA  50/63
Mechanical life Secondary 10000
Rated short-circuit breaking time Secondary 30

Power frequency withstand voltage

(1min) :( wet) (dry) white, right\fracture

 KV 42/48

Lighting impulse withstand votage

(peak) and white, right \ fracture

 KV 75/85

Secondary circuit 1min power

frequency withstand voltage

 KV 2



Standard

1.GB1984 "AC high voltage circuit breakers"

2.GB1102 "nigh-oltage switch and control equipment standards common technical requirements"

3.GB311.1-6 "insulated high voltage transmission and distribution equipment."

4.GB763 "AC high voltage electrical work in long-term fever"

5.GB2706 "AC high voltage electrical dynamic and thermal stability test methods"

6.GB3309 "high voltage switch at room temperature mechanical test"

7.DL / T593 "common ordering technology high voltage switch"

Ambient condition

1. Altitude: ≤ 2000m

2. Ambient temperature: -40°C~+45°C

3.The ambient air can be contaminated dust, smoke, corrosive gases, vapors or salt spray

4.The wind speed does not exceed 34m / s (equivalent to 700pa on the cylindrical surface)

5. Ambient pllution: IV

6. Vibration or earth from the switch and control equipment at the Ministry is negligible
