High Voltage 24KV Surge Protector Electrical Circuit Breakers For Industrial
≥10 Piece
$1,300.00
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Quick Details | |
Place of Origin | CN;ZHE |
Brand Name | Jecsany |
Model Number | ZW32-24 |
Material | stainless steel or hot-dip galvanized steel. |
MOQ | 10 |
Type | Vacuum Circuit Breaker |
Product Name | Voltage Vacuum Circuit Breaker |
altitude | ≤2000m |
ambient temperature | -40°C-+40°C |
Wind speed | 35m/s |
Earthquake intensity | ≤ 8 degre |
Ambient pllution | IV |

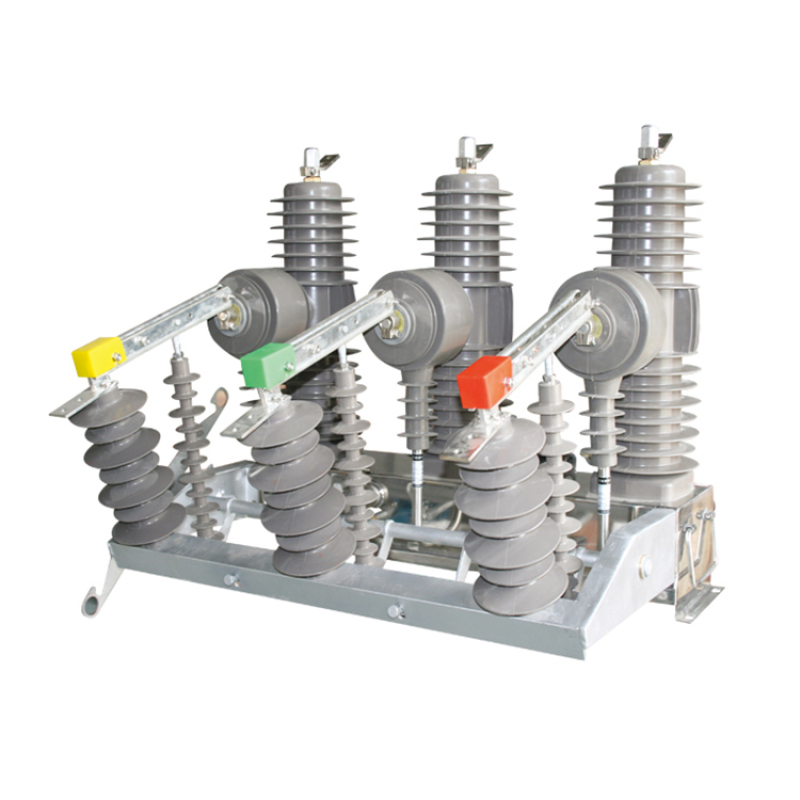

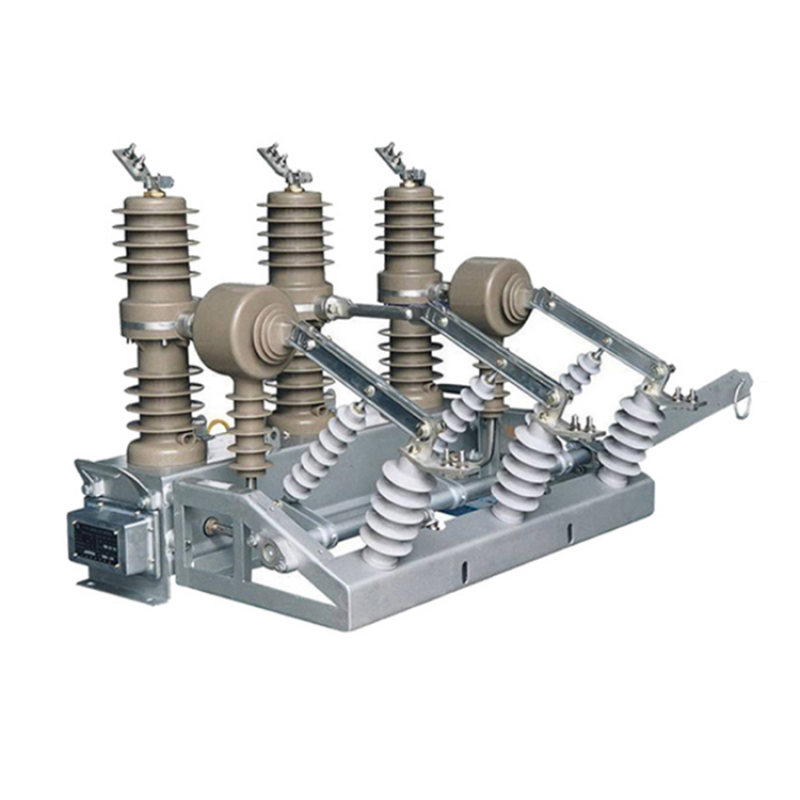

ZW32-24 type outdoor vacuum circuit breaker is rated voltage 24kV, three-phase AC 50Hz outdoor distribution equipment. Mainly used for breaking, closing power system load current, overload current and short circuit Current. For substation and industrial and mining enterprises distribution system protection and control of workplace use, and frequent operation of rural power grids. The circuit breaker vacuum interrupter technique using solid seal, external insulation silicon Rubber sleeve, long life and high relibility, actuator can be miniaturized, highly rliable spring mechanism may also be advanced permanent magnet body. You can also configure isolating switches and itelligent controllers, with But when slicer kind of coincidence Used, enabling four remote functions and distribution automation.
Model description
Technical Parameter
Name | Unit | Data |
Rated voltage | KV | 24 |
Rated power frequency | Hz | 50/60 |
Rated current | KA | 630 |
Rated short-circuit breaking current | KA | 20 |
Rated peak withstand current(peak) | KA | 50 |
Rated short-time withstand current | KA | 20 |
Rated short-circuit making current(peak) | KA | 50 |
Mechanical life | Secondary | 10000 |
Rated short-circuit breaking current breaking times | Secondary | 30 |
Power frequency withstand voltage (1min) :vacuum fracture,white, on the ground\fracture | KV | 65/79 |
Lighting impulse withstand votage (peak) and white, right \ fracture | KV | 125/145 |
Secondary circuit 1min power frequency withstand voltage | KV | 2 |
Standard | 1.GB1984 "AC high voltage circuit breakers" 2.GB1102 "nigh-oltage switch and control equipment standards common technical requirements" 3.GB311.1-6 "insulated high voltage transmission and distribution equipment." 4.GB763 "AC high voltage electrical work in long-term fever" 5.GB2706 "AC high voltage electrical dynamic and thermal stability test methods" 6.GB3309 "high voltage switch at room temperature mechanical test" 7.DL / T593 "common ordering technology high voltage switch" |
Ambient condition | 1. ambient air temperature: + 40°C ~ -40 °C 2. a height of not more than 2000 meters above sea level 3. the wind speed is not greater than 35m/s 4. anti-contamination level for grade IV 5. the earthquake intensity does not exceed 8 degrees 6. no fire, explosion, severe chemical corrosion of the place
|
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
