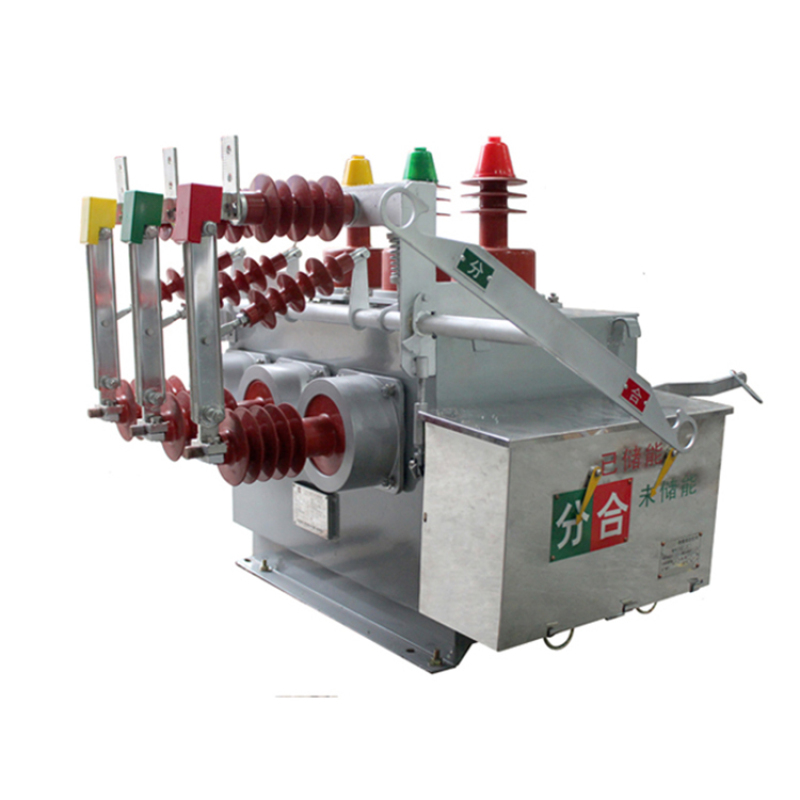

High Voltage 12KV 3 Phase AC Intelligent Circuit Breaker For Substations

Message

$3,500.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

High Voltage  12KV 3 Phase AC Intelligent Circuit Breaker For Substations
High Voltage  12KV 3 Phase AC Intelligent Circuit Breaker For Substations
High Voltage  12KV 3 Phase AC Intelligent Circuit Breaker For Substations
High Voltage  12KV 3 Phase AC Intelligent Circuit Breaker For Substations

High Voltage 12KV 3 Phase AC Intelligent Circuit Breaker For Substations

  • Item No.ZW10-12
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 3500.00  / Piece
$ 35,000.00
You save  $  -35,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberZW10-12
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeCircuit Breaker
Product NameVacuum Circuit Breaker
altitude≤2000m
ambient temperature-40°C-+45°C
Wind speed34m/s
Product Description




ZW10-12, ZW12-12, ZW27-12 model outdoor AC vacuum circuit breaker is a three phase outdoor high voltage AC switch device. It mainly used to make and break load current, overload current and short-circuit current in12kV, 630A, 50/60Hz power system. It is applicable for substations, industry and mining, urban and rural electricity power networks, especially for occasions with frequent operation and automatic power distribution network. The product is especially applicable yo overhead network, opening and closing of load current, overload current and short circuit current and switching and protection of power grids. It accords with the standards of IEC62271-100 & GB1984: AC high voltage circuit breaker, IEC60694 & GB/1984: HV General technical requirement of switch and control apparatus.

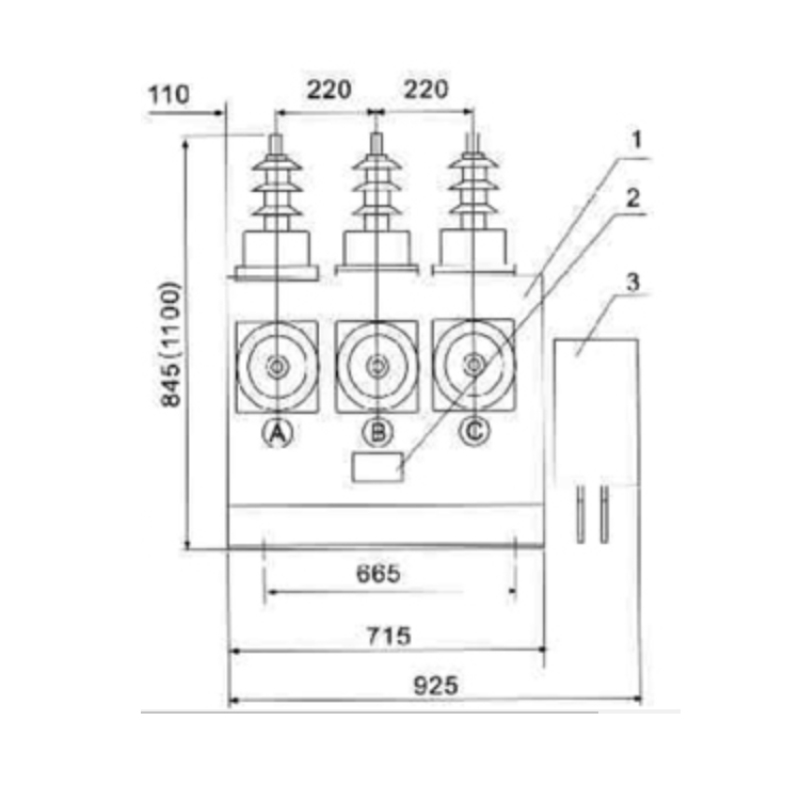

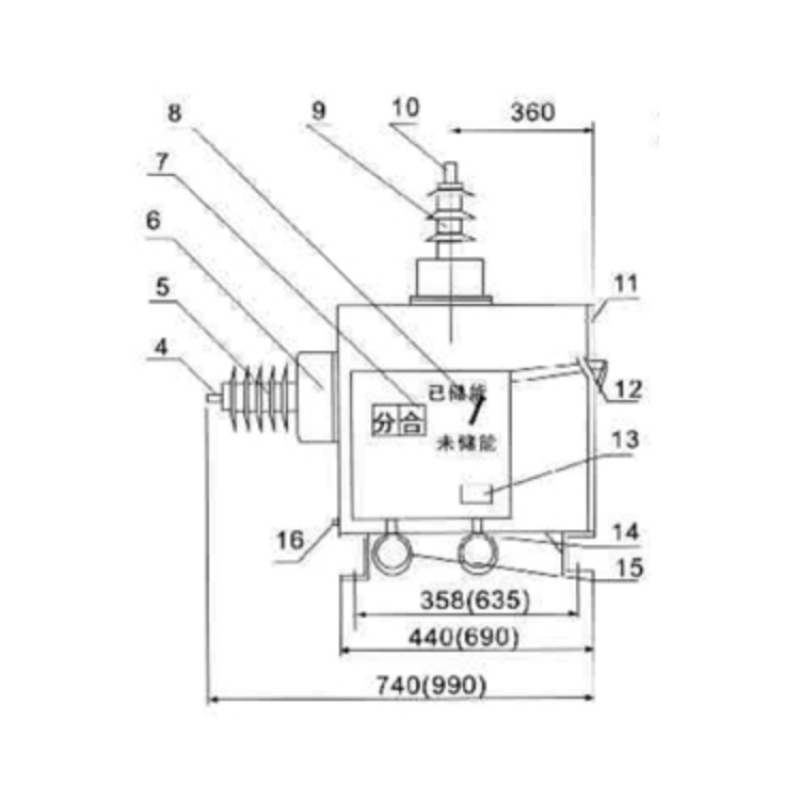

1.Case

2.Nameplate

3.Operation mechanism

4. Wiring terminal

5.Insulated conducing rod

6.Current transformer

7.ON and OFF indicator

8. Energy indicator

9.Insulating sheath

10.Wiring terminal

11.Back cover

12.Manual energy storing plate

13.Nameplate of operation mechanism

14.Manual closing ring

15.Manual closing ring

16Earthing bolt

Model description


 Technical Parameter

NameUnitData
Rated voltagekV12
Rated currentA630
1min P.F withstand voltagekV42/48
Lightning impulse withstand voltage peakkV75/85
Rated short-circuit breaking currentkA16/20/25
Rated short-circuit making current (peak)kA40/50/63
Rated short-time withstand currentkA16/20/25
Rated withstand current (peak)kA40/50/63
Rated short-circuit breaking timetimes30
Mechanical lifetimes10000






Ambient condition

1. Altitude: ≤ 2000m

2. Ambient temperature: -40°C~+45°C

3.The wind speed does not exceed 34m / s

4. Relative humidity: monthly average 90%, daily average 95%;

5. Earthquake intensity: < 8 degree;

 6. Ambient pllution: IV;

7. Ice thickNess: 10mm;

8. Applicable occasions should be free from inflammables, explosives,corrosives and severe vibrations.
