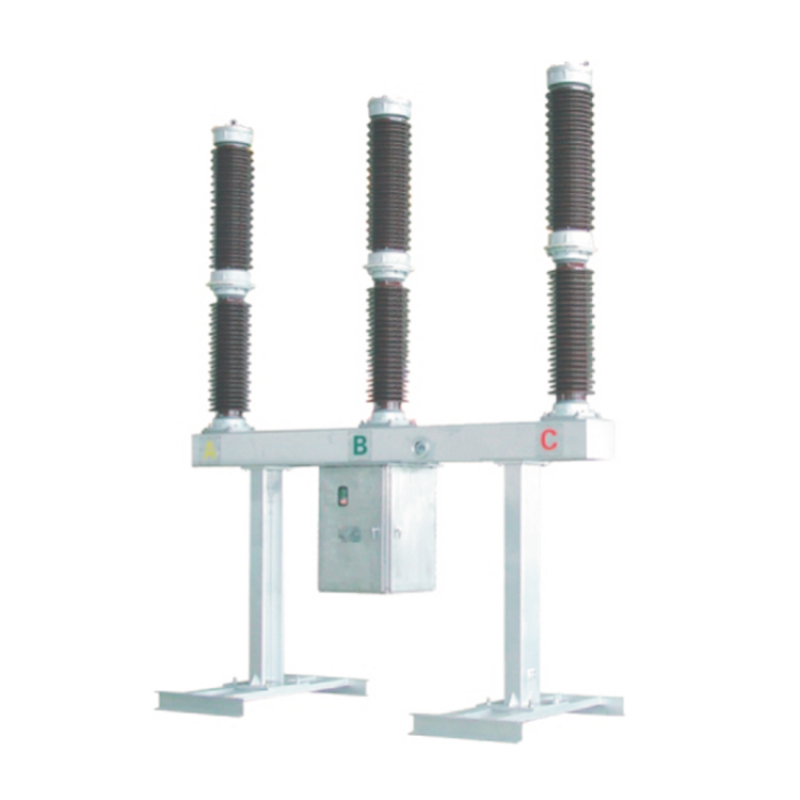

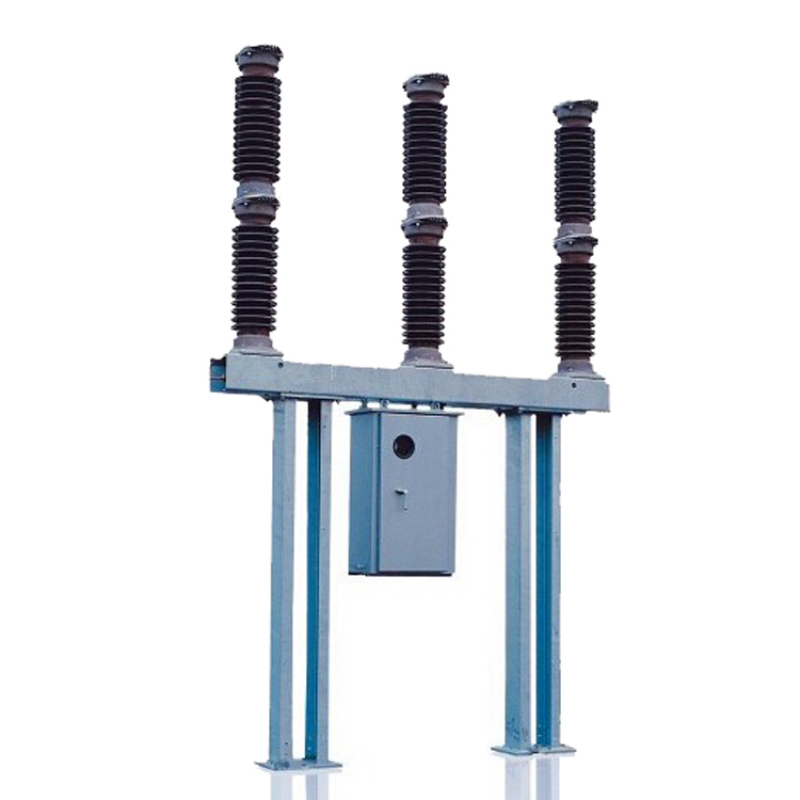

Factory price hot selling LW-40.5 type outdoor HV SF6 circuit breaker

Message

$8,500.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

Factory price hot selling LW-40.5 type outdoor HV SF6 circuit breaker
Factory price hot selling LW-40.5 type outdoor HV SF6 circuit breaker
Factory price hot selling LW-40.5 type outdoor HV SF6 circuit breaker

Factory price hot selling LW-40.5 type outdoor HV SF6 circuit breaker

  • Item No.LW40.5
    MOQ2 Piece
Tag  sourcing

Quantity:

From $ 8500.00  / Piece
$ 17,000.00
You save  $  -17,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberLW40.5
MOQ2
TypeCircuit Breaker
Poles Number3
Product Description






Overview:

LW-40.5/72.5/126/145 series of outdoor SF6 gas circuit breaker using modern processing technology and computer-aided design

techniques, combined with the latest generation of spring bodies and the advantages of a permanent institution. Its pursuit of high reliability, easy to maintain design concepts to create ageneration of superior product, is the most reliable electric power system and the best option.

All series switches meet the following criteria:

     ANSI/IEEE C37.60/IEC 62271-100(GB1984-2003 China standard)

     GBT11022-1999 China Standard
     IEC 60255-11
     IEC 60255-21-1 Class I
     IEC 60255-21-2 Class I
     IEC 60255-21-3 Class I
     IEC 60255-22-1 Class III
     IEC 60255-22-2 Class IV
     IEC 60255-22-3 Class III
     IEC 60255-22-4 Class IV

Using of the enviroment:

    Ambient temperature:-40~+40, the daily average temperature: 25;

    Altitude:≤ 3000m(in excess of the value of technical discussions with the division I);

    Wind speed:35 m/s;

    Earthquake intensity: not more than 8 degrees;

    Degree of ambient air contamination level not greater than: III level;

    Daily average ambient air relative humidity≤95%, on average≤90%;

    Saturated vapor pressure of daily mean values≤ 2.2*10^(-3) MPa, on average≤1.8*10^(-3) MPa;

More about the use of environment conditions, please consult with the manufacturer.

LW-40.5 SF6 CB-3.jpg

 Technical Parameter

 No.

Item

   Unit

Data

 1

Rated voltage

 KV

40.5

 2

Rated frequency

 Hz

50/60

 3

Rated current

 A

 1250

 4

1min power frequency withstand voltage

 KV

 95/118

 5

Lingthning impluse withstand voltage(peak value

 KV

215

 6

5 min power frequency voltage at zero gas pressure

 KV

40.5

 7

Rated short circuit breaking current

 KA

63,80

 8

Rated out-of-phase breaking current

 KA

 8/10

 9

 Rated cable(line) charging breaking current(peak)

 A

 31.5

 10

 Rated gas pressure

 MPa

0.4/0.15 (higher current)

 11

 Main loop resistance

 uΩ

≤80

 12

 Operation sequence



 O-0.3s-CO-180s-CO

13

 SF6 gas leakage rate(per year)

 %

≤1

 14

 Moisture content(V/V)

 ppm

≤150

 15

Creepage distance Across the open comtacts

Creepage distance To earth

mm

mm

 1256

1256

 16

Mechanical life

 times

10,000

 Note: For short circuit breaking current & rated current is optional by clients.
