China Supplier IEC 12-27kv Electrical Removable High Voltage Type K Fuse Link
30-1000 Piece
$0.60
1000-10000 Piece
$0.59
≥10000 Piece
$0.57
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
| Quick Details | |
| Place of Origin | CN;ZHE |
| Brand Name | Jecsany |
| Model Number | K TYPE |
| Usage | High Voltage |
| MOQ | 30 |
| Breaking Capacity | High |
| Safety Standards | IEC |
| Type | K Type |
| Color | As Photo Or Customized |

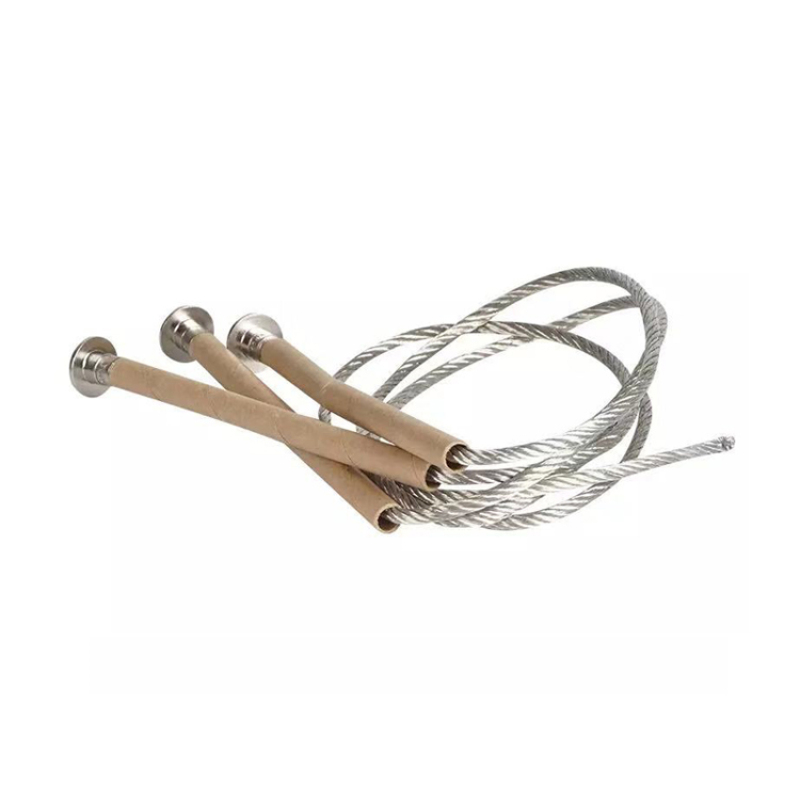

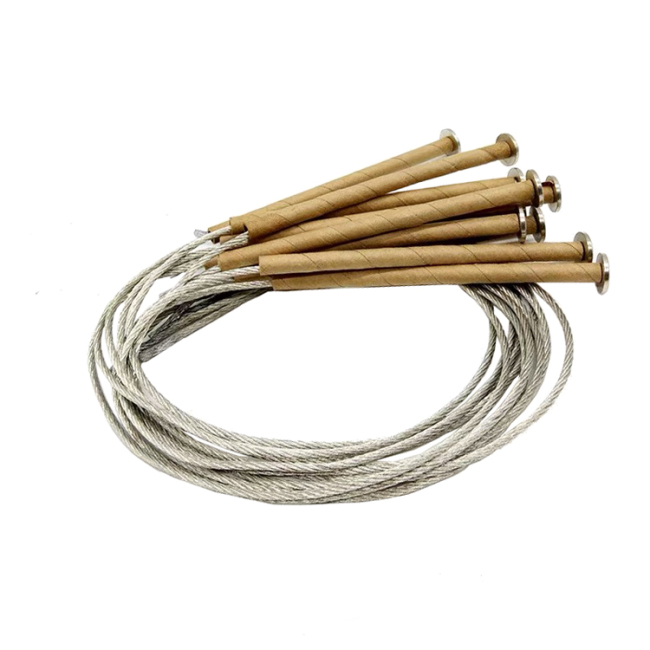

12-27kv Length 584mm 10A Various Removable Button Head K Type Fuse Elements Fuse Links
Meet all applicable Standards ANSI/NEMA
JEC Type K and Type T fuse links are made in complete accordance with standards ANSI/NEMA. Other links meet all the standards except those covering time-current characteristics. Time-current characteristics for links other than K and T links are not covered in the ANSI standards.
Precision — The standard of JEC fuse links
JEC fuse links assure system protection because they are precision manufactured. The fusible materials used in JEC Fuse Links are under continual control during manufacture. Pre-tested to guarantee their electrical values, these materials are held to precise tolerances. At critical points during the manufacturing process, rigid inspections are made.
Packaging

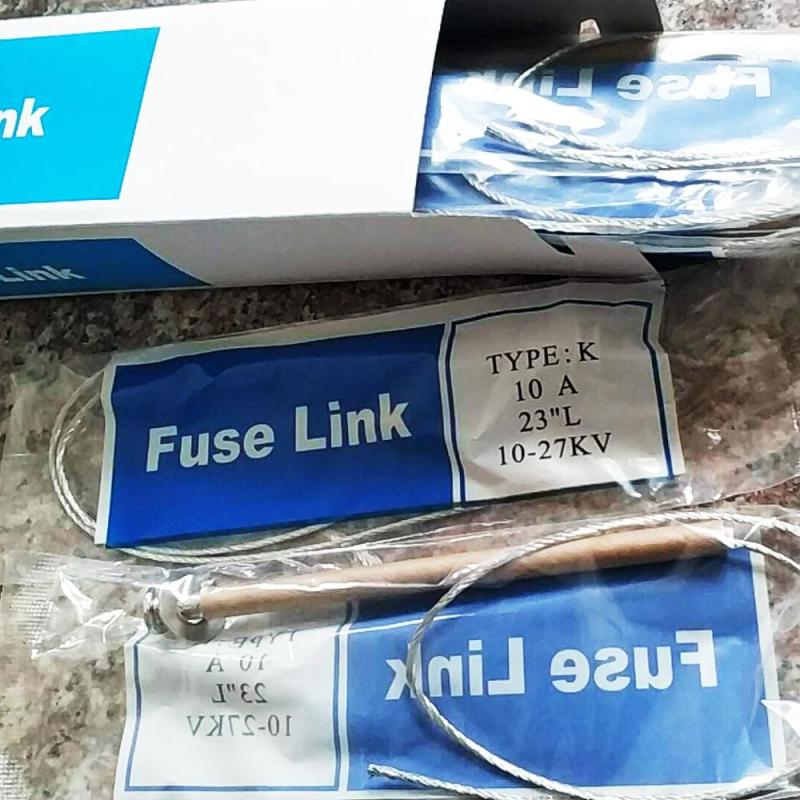

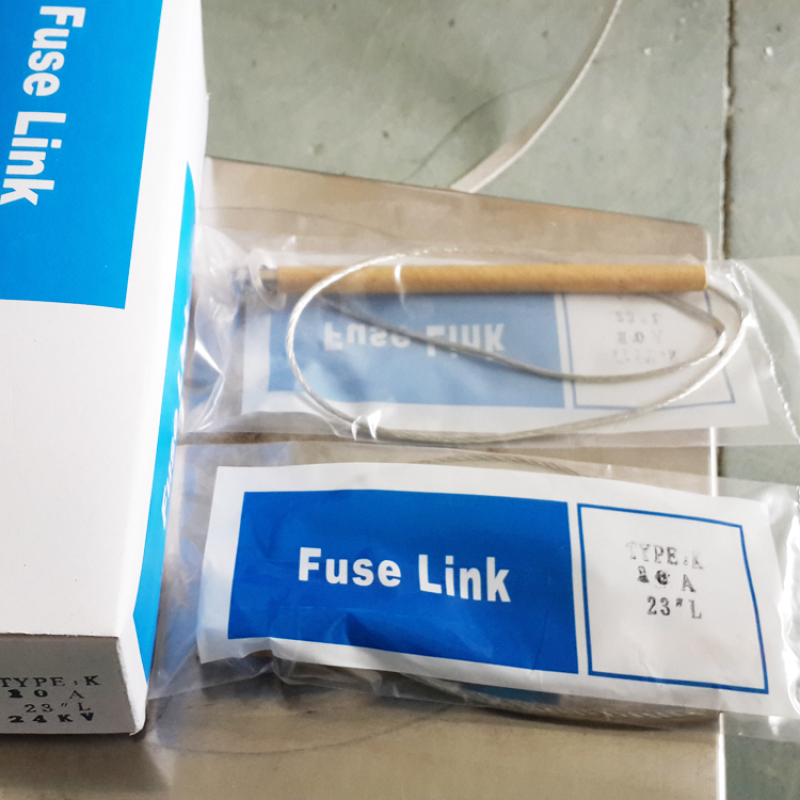

JEC fuse links come in protective plastic bags with perforations to facilitate quick, easy opening even when lineman’s gloves are worn. Each bag remains completely sealed for all-weather protection and keeps the links protected in the line truck’s bins.
Type and amperage is printed on each bag, for easy identification.
Materials used
The fusible section of the 1 through 3 ampere Type K links consist of a stainless-steel fuse strain wire; the 6 through 10 ampere, stainless-steel strain wire and a copper-alloy fuse wire; 12 through 100amperes, a stainless steel strain wire and a silver-copper fuse wire; 140 and 200 ampere, a silver -copper fuse wire large enough to serve as both strain and fuse wire.
Application
The fast characteristics of Type K fuse links were established by ANSI/NEMA to provide fuse links that would meet existing coordination schemes.
JEC Type fuse links are designed to carry 150% of their rated current without damage to the fuse link itself or the cutout in which it is installed.
This capacityis for special loading situations, such as shorttime over loads and cold load pick-up.

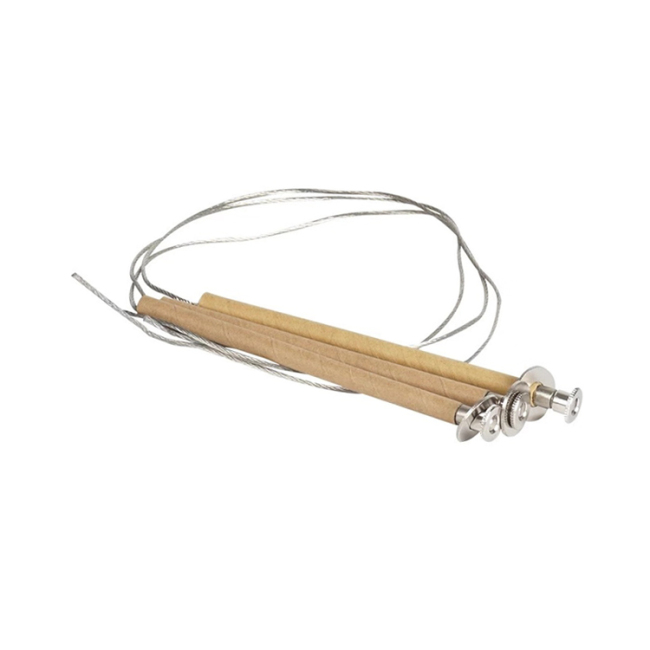

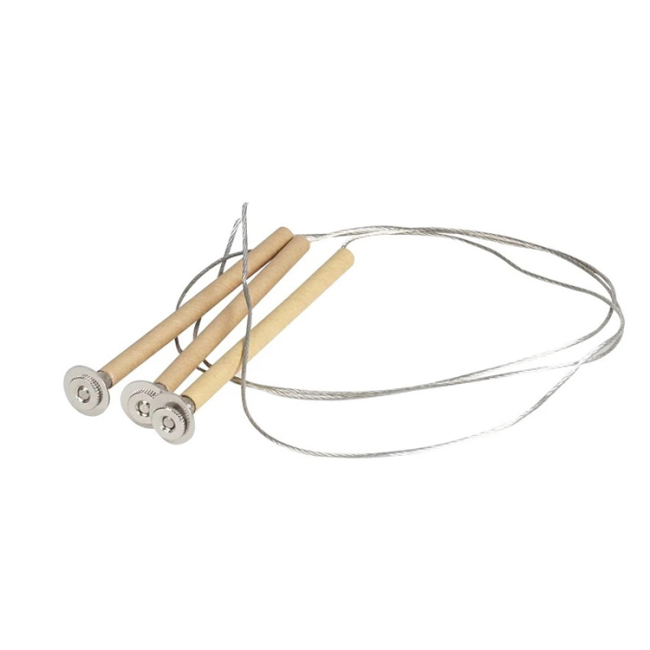

Button head and length
Conforming to all applicable ANSI/NEMA specifications, JEC Type Klinks are available with a removable or solid button head.
Twin Pigtail Type K fuse links
The twin pigtail fuse link is convenient to work with and easier to install in the cutout than conventional single pigtail fuse links. The pigtails attach under the clamp with one on each side of the attachment stud.
Technical Parameter Table
Melting Speed Ratio | T type: 10~13 ; K type: 6~8 |
Rated Current | 1, 2, 3, 5, 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 65, 75, 80, 100, 120, 140, 200A |
Standard | IEC 60282-2 |
Environmental Conditions | Ambient Temperature: -30℃ - +40℃ Altitude: 3000m Frequency: 50Hz / 60Hz Maximum Wind Speed: 35m/s |
Technical Parameter Table 2
Rated current (A) | Dimensions (mm) | ||||
A | B | C | D | F | |
1-25 | 12.5±0.2 | 19.0 ± 0.2 | 12/24KV: 530-600 36KV: 787 | 2 | 6.5 |
30-40 | 12.5±0.2 | 19.0 ± 0.2 | 3 | 8.0 | |
50-100 | 19.0±0.3 | not applicable | 5 | 10.0 | |
120~200 | 19.0±0.3 | not applicable | 7 | 12.0 | |
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
| Business Type | Trading Company | Country / Region | Zhejiang, China |
| Main Products | Cable Accessories,Surge Arresters,Fuse Cutouts,Isolates Switches,Reclosers | Total Employees | 5 - 10 People |
| Total Annual Revenue | confidential | Year Established | 2017 |
| Certifications | ISO9001 | Product Certifications | |
| Patents | Trademarks | ||
| Main Markets | Africa 46% South America 30% Domestic Market 10% | ||
JECSANY has been thrived on supplying the products according to the international standard such as 61952, IEC 61109, IEC 60099-4, IEC 60282-2, etc. With scientific administration, professional engineers, highly trained technicians and skilled workers, JECSANY is capable to produce more than 2 million units of the main electrics in best quality annually, almost all of its products have been made for overseas markets and well sold to USA, South Africa, Vietnam, Korea, South America, South Asia etc. over 50 countries worldwide. Some of its products have already been granted IEC certificates and have won high reputation around world market.
In order to meet new challenge and satisfy increased customers' demand on our products and quality, JECSANY will consistently keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual .
