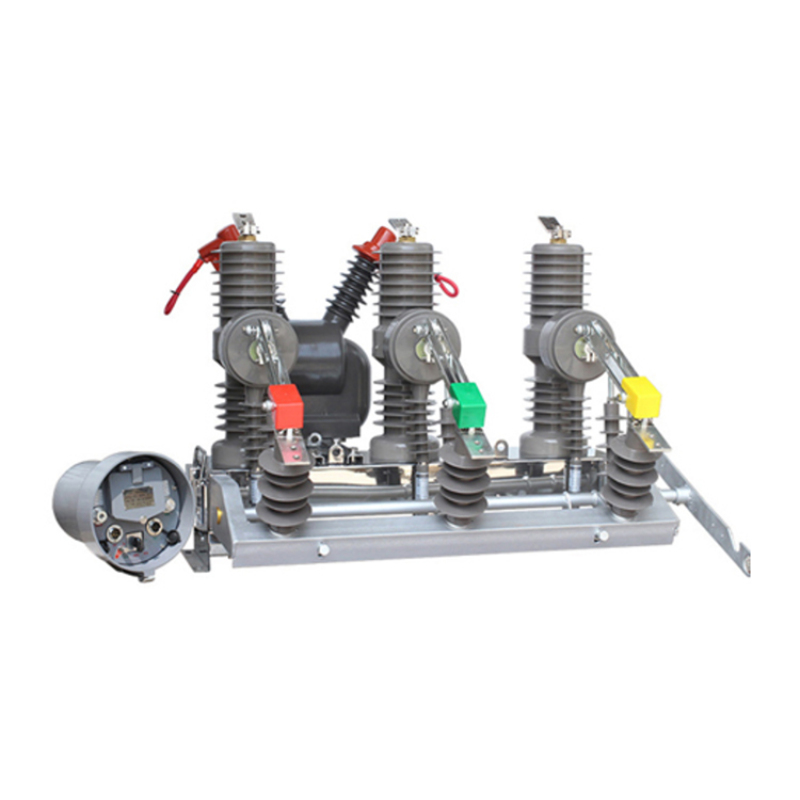

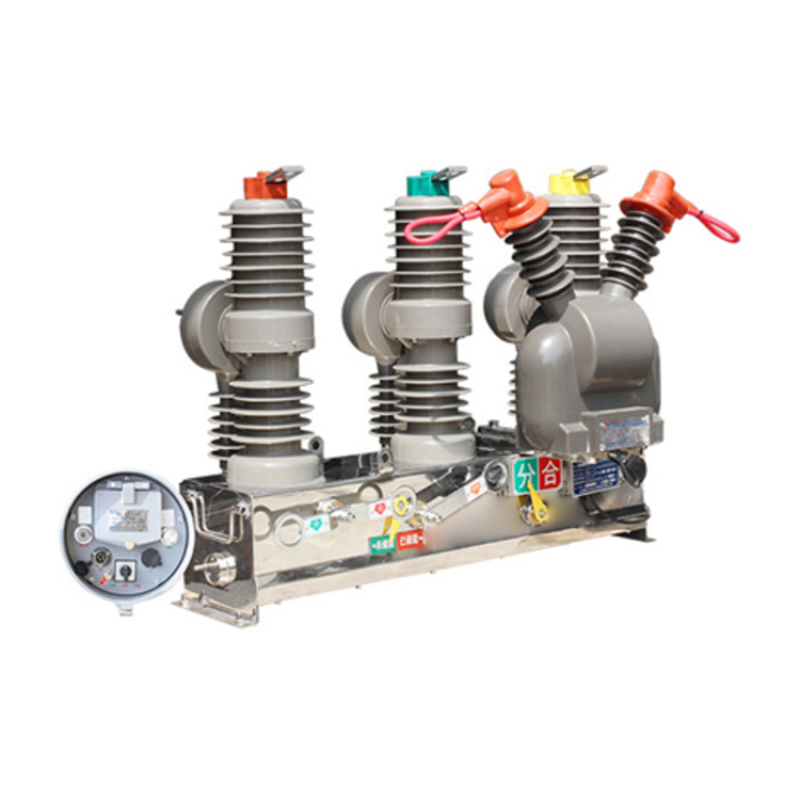

China Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations

Message

$2,500.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

China Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations
China Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations
China Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations
China Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations

China Outdoor 3 Phase 12KV Automatic High Voltage Vacuum Circuit Breaker For Substations

  • Item No.ZW32-12F
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 2500.00  / Piece
$ 25,000.00
You save  $  -25,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberZW32-12F
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeVacuum Circuit Breaker
Product NameOutdoor Voltage Circuit Breaker
altitude≤2000m
ambient temperature-40°C-+45°C
Wind speed34m/s
Earthquake intensity≤ 8 degre
Ice thickNess10mm
Product Description




ZW32-12 model outdoor AC vacuum circuit breaker is used to make and break load current, overload current and short-circuit cur rent in 12/24kV, 50/60Hz power system. It is applicable for substations, industry and mining, urban and rural electricity power networks, especially for occasions with frequent operation and automatic power distribution network. It accords with the standard of IEC622 71-100 & GB1984: AC high voltage circuit breaker, IEC60694 & GB/T11022: HV General technical requirement of switch and control apparatus.

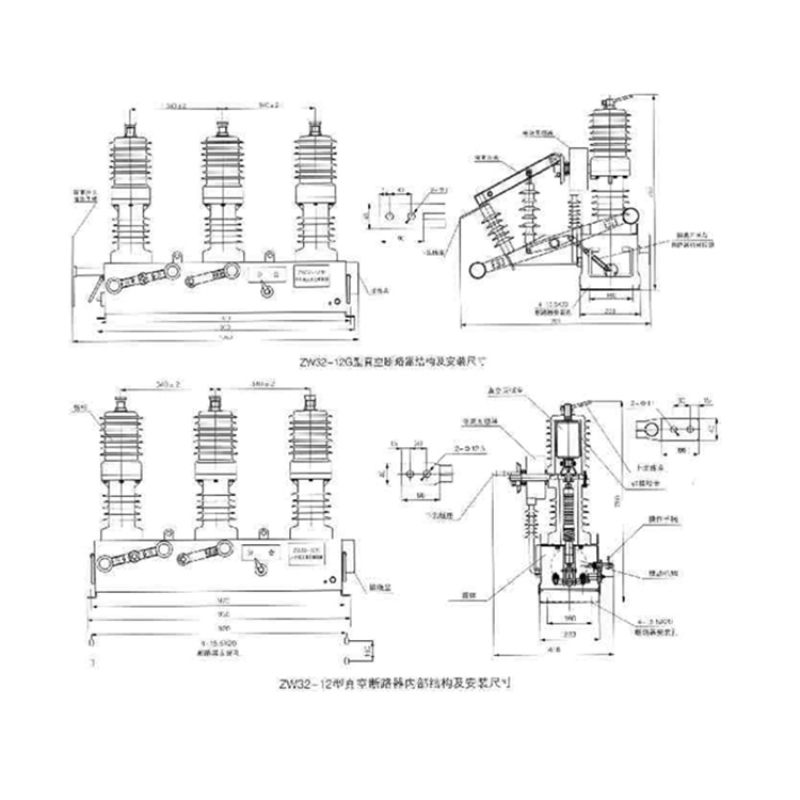

Model description


 Technical Parameter

NameUnitData
12kV
Rated voltageKV12
Rated currentA630,1250

   Rated

insulating

level

  1min.PF

withstand voltage

 dry KV 42(across open contacts:48)
 wet 34

  Lightning impulse

withstand voltage(peak)

 kv 75(across open contacts:85)

Rated short-circuit

breaking current

KA 20,25

Rated short-circuit

making current (peak)

KA 50,63

Rated peak

withstand current

KA 50,63

4s rated short-time

withstand current

KA 20,25
Rated operating sequence O-0.3s-CO-180s-CO

Breaking times of

rated short-circuit

breaking current

 times 30
Mechanical duration times 10000

Rated voltage of

energy storage motor

 VDC or AC220,DC110, 48, 24
Rated operation voltage V DC or AC220,DC110, 48,24
Abrasions thickNess of contacts mm

Rated current of

over-current release

 A
   Current transformer ratio

200/5, 400/5, 600/5

(Protection degree: Ⅲ class, Class: 0.5)




Standard

IEC622 71-100 & GB1984: AC high voltage circuit breaker, IEC60694 & GB/T11022: HV General technical requirement of switch and control apparatus.

Ambient condition

1. Altitude: ≤ 2000m

2. Ambient temperature: -40°C~+45°C

3. Wind speed: 34m/s

4. Earthquake intensity: ≤8 degre

5. Ambient pllution: IV

6. Ice thickNess: 10mm

7. Applicable occasions should be free from inflammables, explosives,corrosives and severe vibrations.
