China Manufacturer Hot Dip Galvanized Steel Precision Preformed Guy Grip Dead End Clamp
≥200 Piece
$30.00
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Quick Details | |
Place of Origin | CN;ZHE |
Brand Name | Jecsany |
Model Number | DeadEnd-Coated |
MOQ | 200 |

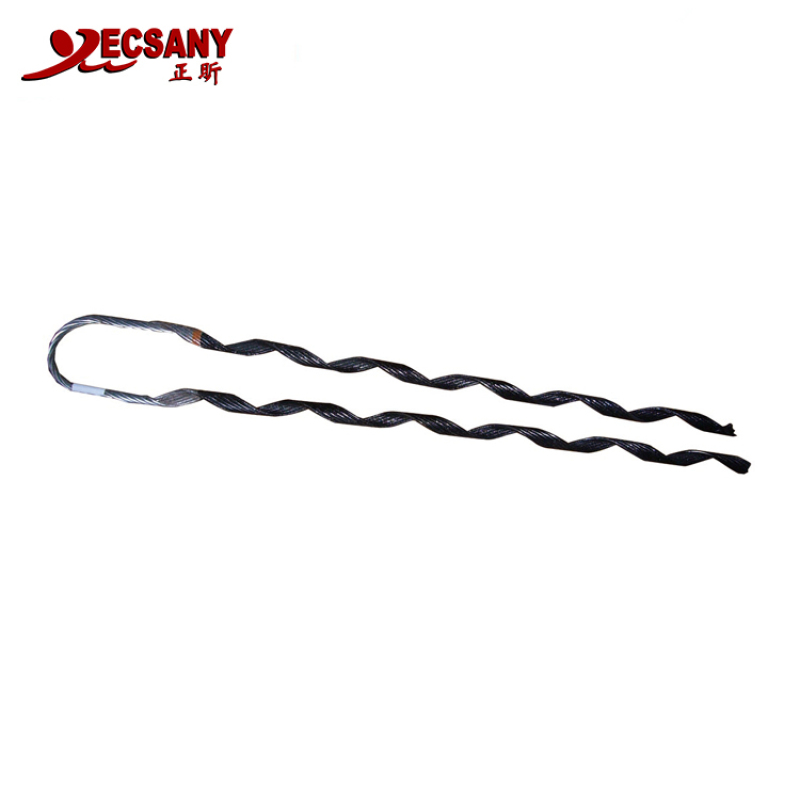

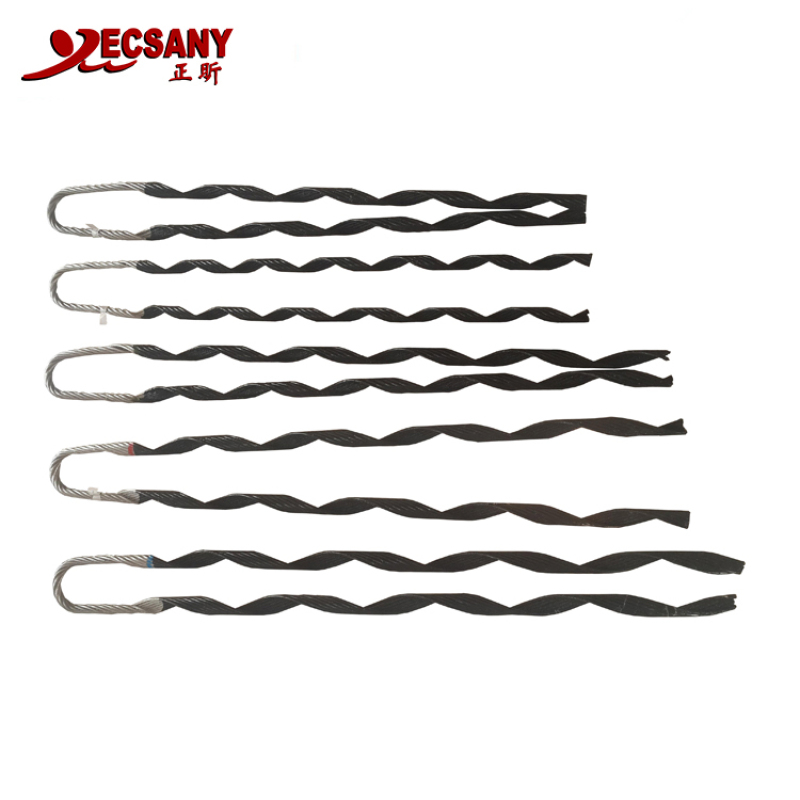

Galvanised Steel Pole Top Make-offs
Right Hand lay Standard
PT NO | Stay Dia. mm | Stranding mm | Color Code | Rods per set | Sets per pack | Approx Pack Mass (kg) | Approx Length (mm) | Associated Guy Grip Used with PT |
284-6 | 7.21 | 3/3.35 | Black | 4 | 15 | 8 | 2290 | GSDE 284 |
312-6 | 7.92 | 7/2.65 | Brown | 4 | 15 | 14 | 2290 | GSDE 240 |
345-6 | 8.76 | 3/4.00 | Red | 4 | 15 | 17 | 2290 | GSDE 345 |
384-6 | 9.75 | 7/3.25 | Black | 4 | 15 | 19 | 2290 | GSDE 384 |
386 | 9.80 | 4/4.00 | Black | 4 | 15 | 19 | 2290 | GSDE 384 |
396-6 | 10.06 | 7/3.35 | Blue | 4 | 15 | 14 | 2290 | GSDE 396 |
432-6 | 10.97 | 5/4.00 | Brown | 4 | 10 | 17 | 2290 | GSDE 432 |
472-6 | 12.19 | 7/4.00 | Green | 4 | 10 | 20 | 2290 | GSDE 472 |
520-6 | 13.25 | 19/2.65 | Orange | 4 | 10 | 24 | 2290 | GSDE 520 |
640-6 | 16.25 | 19/3.25 | Brown | 7 | 5 | 18 | 2290 | GSDE 640 |
Shackle:Hot galvanized steel shackles play a role in connection with the tower fasteners. Failure load: U-7 to 70kN, U-10
to 100kN,U-12 to 120kN.

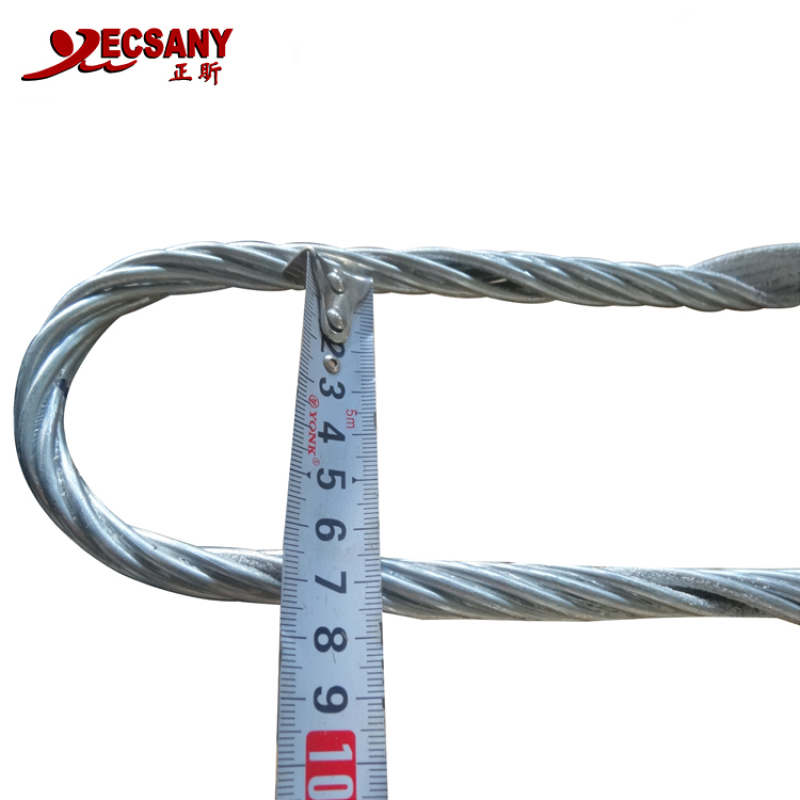

Thimble:Hot dip galvanized steel precision thimble, in the U-shape bending head, which can make tension clamp connect
withexstrain rod,
Pretormed tension rods:Be made of galvanized steel wire or aluminum clad steel and preformed into the process when
prefabricated beam, inner wall layer ot emery stick, and enhance the friction between clamp and cable.
Pretormed armour rods:Gaivanized steel or aluminum ciad steel wire, preformed armour rods wall sticky particulate silicon
carbideto increase friction and reduce the pressure on the cable side. preformed rods when the pre-processing into several
sub-beams,to avoid istalation errors and to facilitate rapid instalation. Pretormed wire toward the end of different specifications
according tothe radial lateral bending. to avoid vibration in the breeze under the cable clamp at the end of the friction and
prevent damage tocable extrusion.
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.



Business Type | Trading Company | Country / Region | Zhejiang, China |
Main Products | Cable Accessories,Surge Arresters,Fuse Cutouts,Isolates Switches,Reclosers | Total Employees | 5 - 10 People |
Total Annual Revenue | confidential | Year Established | 2017 |
Certifications | ISO9001 | Product Certifications | |
Patents | Trademarks | ||
Main Markets | Africa 46% South America 30% Domestic Market 10% |
JECSANY has been thrived on supplying the products according to the international standard such as 61952, IEC 61109, IEC 60099-4, IEC 60282-2, etc. With scientific administration, professional engineers, highly trained technicians and skilled workers, JECSANY is capable to produce more than 2 million units of the main electrics in best quality annually, almost all of its products have been made for overseas markets and well sold to USA, South Africa, Vietnam, Korea, South America, South Asia etc. over 50 countries worldwide. Some of its products have already been granted IEC certificates and have won high reputation around world market.
In order to meet new challenge and satisfy increased customers' demand on our products and quality, JECSANY will consistently keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual .
