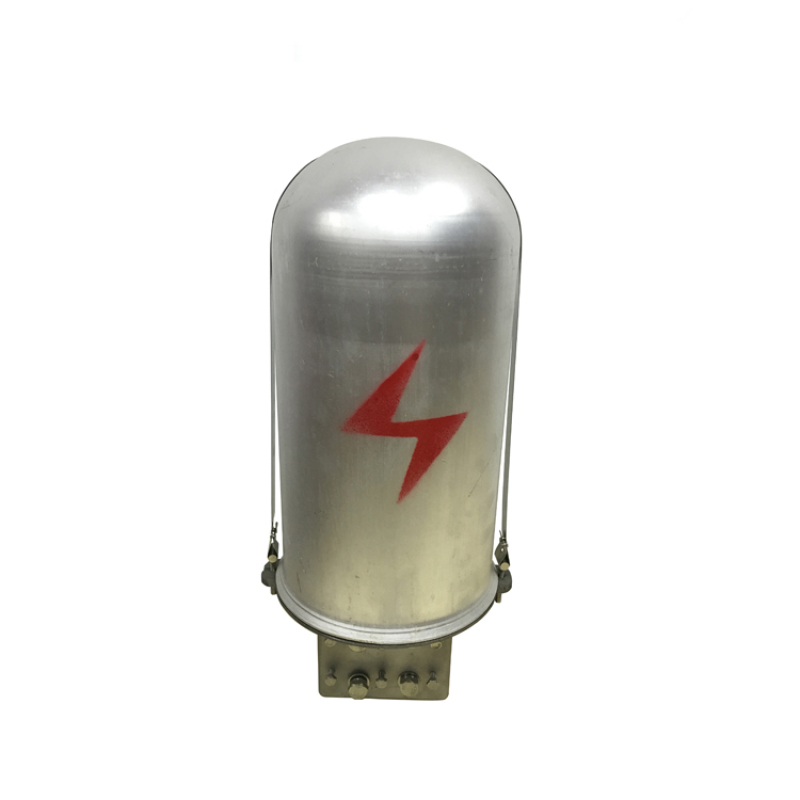

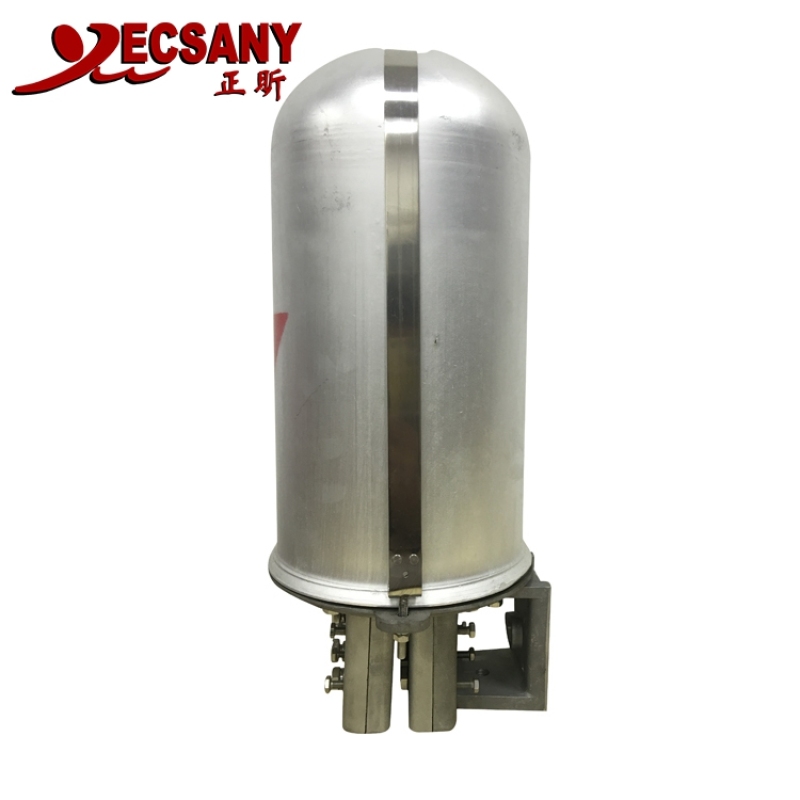

China Aluminum Alloy Stainless Steel Metal Fiber Optic Joint Box
≥10 Piece
$46.00
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Quick Details | |
Place of Origin | CN;ZHE |
Brand Name | Top pole Box |
Model Number | IMG |
Material | Aluminium alloy |
MOQ | 10 |
Application | ADSS and OPGW |
Color | Silver White |
Service life | more than 25 years |
Environment temperature | -40℃ ~ +60℃ |
Atmospheric pressure | 70KPa-106KPa |
Normal temperature sealing | Internal pressure 70KPa, keep for 72 hours, the pressure won’t fall. |
Cycle | Room temperature: 20℃ , high-low temperature: -40℃~ +60℃ , at least for four hours, cycle one time per 12 hours, when internal pressure 60KPa±5KPa carries out 10 times, the drop amplitude of pressure is not over 5KPa. |
High temperature sealing | internal pressure 70KPa, keeping for 168 hours under 60°C, the pressure won’t fall. |
Strength | Tensile force is not less than 2000N; the box body’s pressure resistance is not less than 3000N. |
Bending force of cable and joint box | 150N (±45°) |
Twisting force of cable and joint box | 50N M ·M (+90°C) |
Service life | more than 25 years |
Advantage:
1. With excellent environmental applicability, reliability and waterproof, it can be fully met the requirements of the life of the optical communication systerm.
2. Easy to operate, optical fiber splicing loss is not affectedx by the stress, the transmission properties of the optical fiber.
3. Connector box in the optical fiber fixed on the tower and the connector box fixed is convenient, fast and strong. It also can be instailed on the tower. the concrete pole.
4. The splice, reinforced by hot-melting & hot-shrinking bushing., and the excesss length of fiber optic cable are accommodated in laminated way.
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.



Business Type | Trading Company | Country / Region | Zhejiang, China |
Main Products | Cable Accessories,Surge Arresters,Fuse Cutouts,Isolates Switches,Reclosers | Total Employees | 5 - 10 People |
Total Annual Revenue | confidential | Year Established | 2017 |
Certifications | ISO9001 | Product Certifications | |
Patents | Trademarks | ||
Main Markets | Africa 46% South America 30% Domestic Market 10% |
JECSANY has been thrived on supplying the products according to the international standard such as 61952, IEC 61109, IEC 60099-4, IEC 60282-2, etc. With scientific administration, professional engineers, highly trained technicians and skilled workers, JECSANY is capable to produce more than 2 million units of the main electrics in best quality annually, almost all of its products have been made for overseas markets and well sold to USA, South Africa, Vietnam, Korea, South America, South Asia etc. over 50 countries worldwide. Some of its products have already been granted IEC certificates and have won high reputation around world market.
In order to meet new challenge and satisfy increased customers' demand on our products and quality, JECSANY will consistently keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual .
