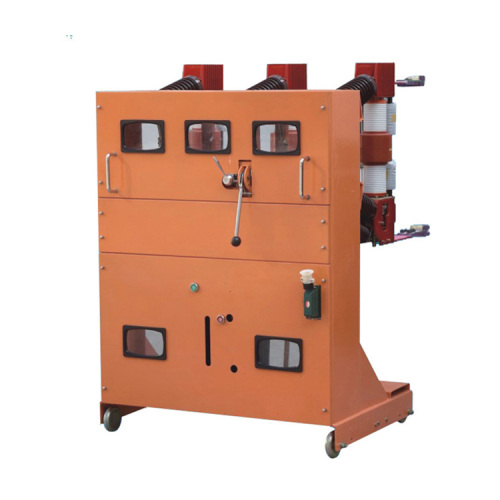

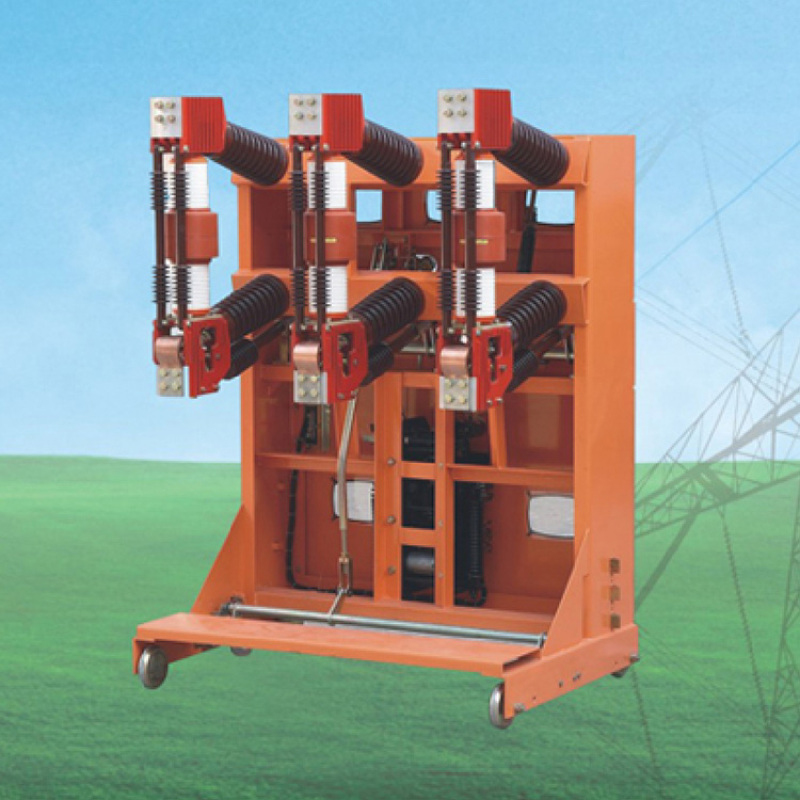

China AC High Voltage Handcart Type Indoor Vacuum 3 Phase Circuit Breaker

Message

$1,500.00

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

China AC High Voltage Handcart Type Indoor Vacuum 3 Phase Circuit Breaker
China AC High Voltage Handcart Type Indoor Vacuum 3 Phase Circuit Breaker
China AC High Voltage Handcart Type Indoor Vacuum 3 Phase Circuit Breaker
China AC High Voltage Handcart Type Indoor Vacuum 3 Phase Circuit Breaker

China AC High Voltage Handcart Type Indoor Vacuum 3 Phase Circuit Breaker

  • Item No.ZN23-40.5
    MOQ10 Piece
Tag  sourcing

Quantity:

From $ 1500.00  / Piece
$ 15,000.00
You save  $  -15,000.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberZN23-40.5
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeVacuum Circuit Breaker
Product NameHandcart Vacuum Circuit Breaker
altitude≤1000m
ambient temperature-30°C-+40°C
Product Description




      ZN23- 40.5 series handcart type indoor vacuum circuit breaker for the high voltage rated 40.5kv, three- phase AC 50Hz indoor high-otage electrical equipment. Apply to industrial and mining enterprises, substation and transmission and distribution systems for control and protection switching; particularly suitable for metallurgy. electric arc steel-making industries, elc. frequent operation required, as a control and protection equipment.

      ZN23-40.5 Series meet GB1984-89 Standards.


Model implication

 2019101616390935935 - .jpg

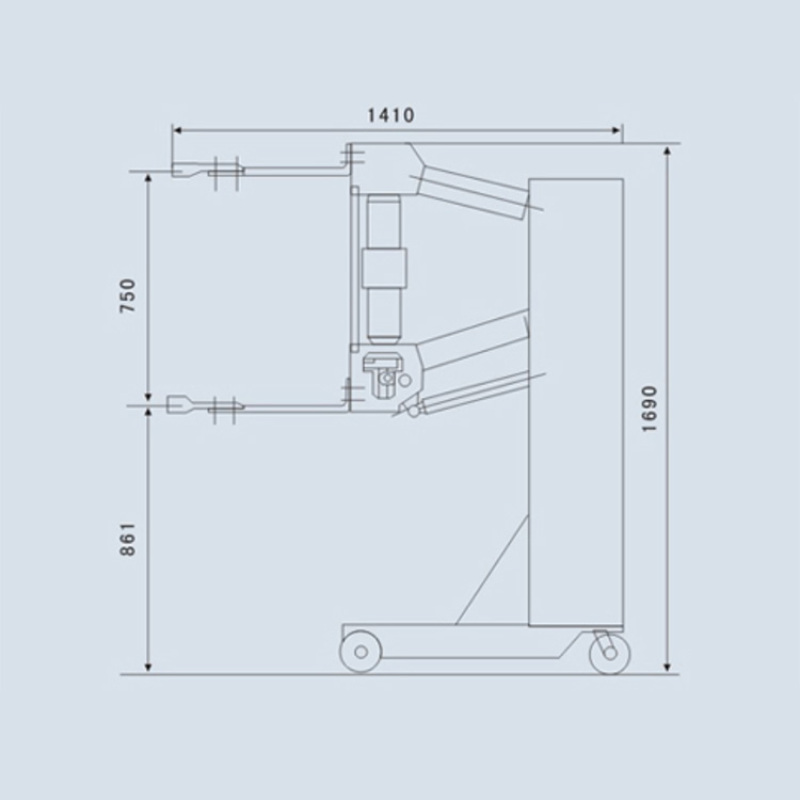

Overall dimension




 Technical Parameter



ItemUnitsParameters
Rated voltageKV40.5
Thunder impulse withstand voltage(peak value)KV185
Imin industrial frequency withstand voltageKV95
Rated frequencyHz50
Rated currentA1250,1600, 2000
Rated short- circuit break currentKA 25,31.5
Rated short -circuit withstand currentKA 25,31.5
Rated peak value withstand currentKA 63,80
Rated short- circuit duration timeS 4
Rated short circuit breaking timems ≈90
Rated short circuit closing currentKA 63.80
Rated operation order O-0.3s-CO-180s-CO
Time of closing brakems 50~ 85
Time of breaking brakems 40~ 85
Rated short-circuit current break and close timesTimes 20
Mechanical life-spanTimes 10000
Rated dropout current of condenser bankA 630
Rated power of energy- storage electric machineW 275
Rated volt of energy-storage motorV AC/DC220.110
Storage timeS <15
Closing and opening solenoid rated voltageV AC/DC220.110
Over current tripping device rated currentA 5
Auxiliary switch rated voltage currentA 10



Standard

GB1984-89 Standards.



Operating conditions

1. Ambient temperature: - 30℃-+40℃

2.Earthquake intensity:≤8 degree

3.Altitude: ≤1000m

4.Relative humidity: daily average value is not greater than 95%, monthly average is not geater than 90%;

5. The surrounding air is not corrosive and flammable gas, steam and other signficant pollution
