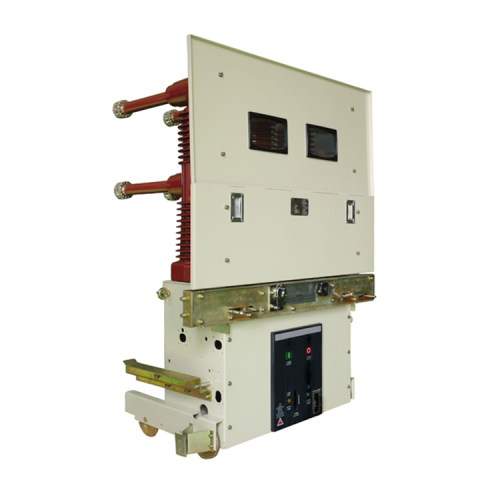

China AC High Voltage 40.5KV Indoor Vacuum Circuit Breaker
≥10 Piece
$2,000.00
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Quick Details | |
Place of Origin | CN;ZHE |
Brand Name | Jecsany |
Model Number | ZN85-40.5 |
Material | stainless steel or hot-dip galvanized steel. |
MOQ | 10 |
Type | Vacuum Circuit Breaker |
Product Name | Vacuum Circuit Breaker |
altitude | ≤1000m |
ambient temperature | -40°C-+40°C |
ZN85 indoor hghvoltage alternating-current vacum crcit breaker has a frequency of 50Hz and a rated vlage of 40.5kv. It aplies to the electrical equipment control and protection in industrial and mining enterprises, power plants and substations, particularly to the places needing frequent operatin. It can be fixed in a switch cabinet or itatled on a handcart.
With stable performance and convenient inalatin, it is the best choice for the control and protecion of high-voltage power trasmission and distribution systems.

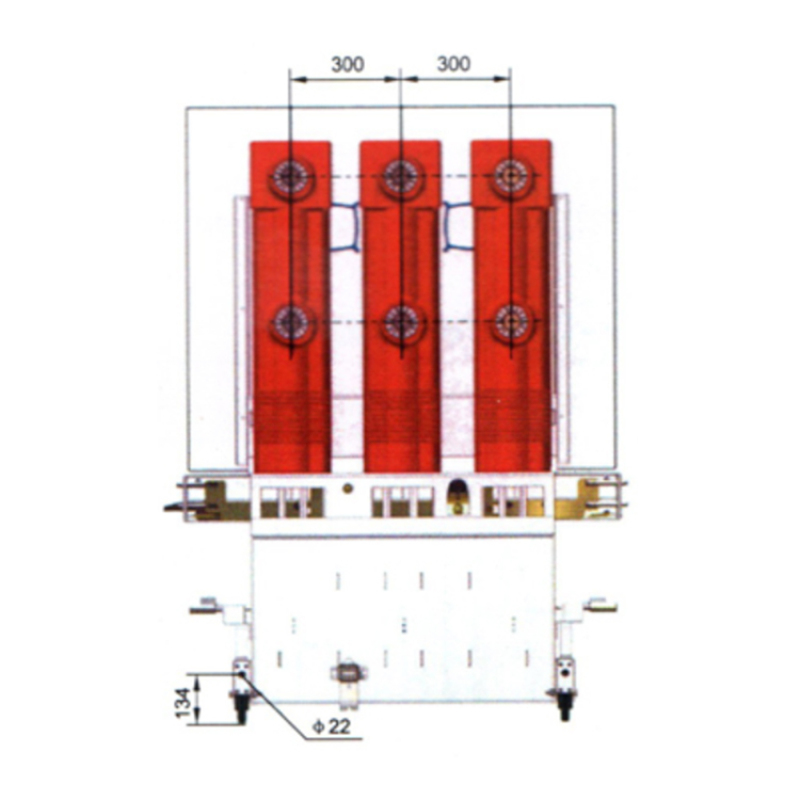

Overall and Installation dimension

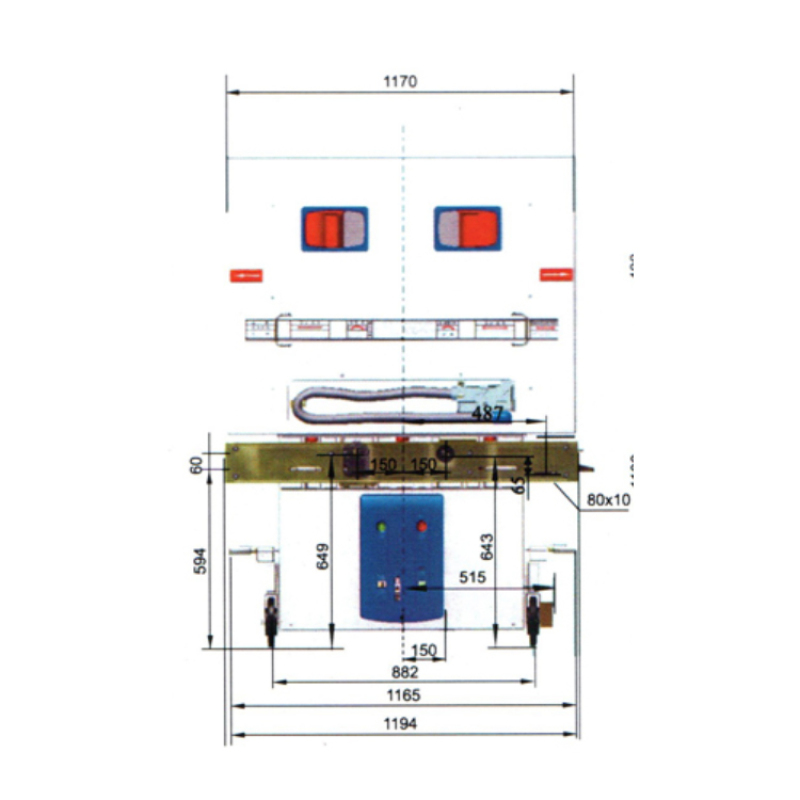

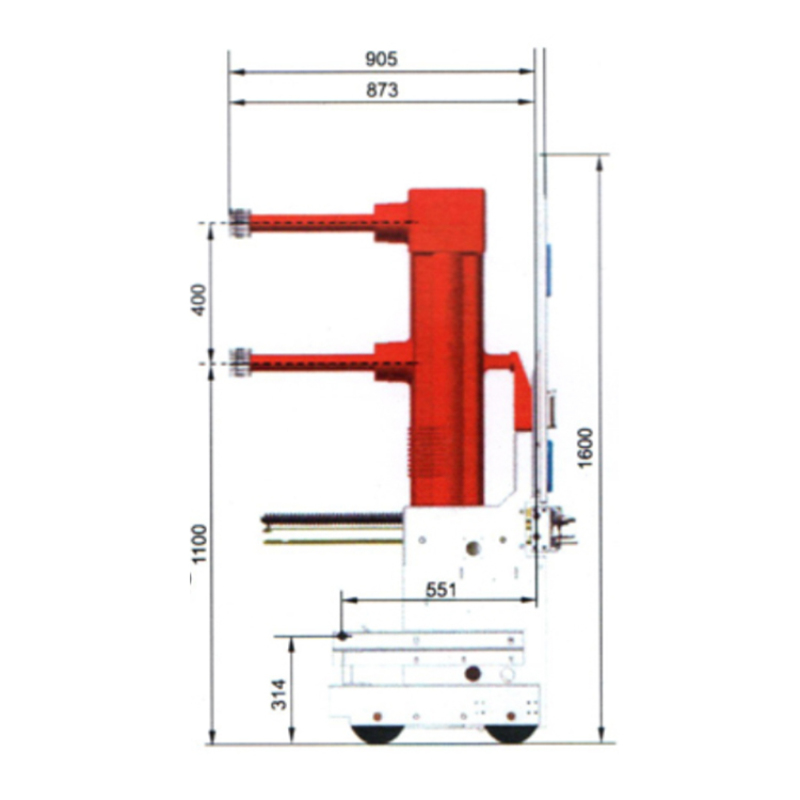

Overall dimension of ZN85 -40 5(insulating cylinder handcart) indoor high-voltage alternating-current circuit breaker
Technical Parameter
1.1 Technical parameters
ltem | Unit | Reference value | |
Rated voltage | kV | 40.5 | |
Rated insulation level | Lightning impulse withstand voltage | kV | 185 |
1min power-frequency withstand voltage | kV | 95 | |
Rated frequency | Hz | 50/60 | |
Rated current | A | 630/1250/1600/2000/2500/3150 | |
Rated short-circuit breaking current | kA | 20/25/31.5 | |
Rated short-circuit making current (peak value) | kA | 50,63,80 | |
Rated short-time withstand current | kA | 20/25/31.5 | |
Rated withstand current (peak value) | kA | 50,63,80 | |
Required operation sequence | O-0.3s-CO-180s-CO | ||
Rated short-circuit duration | s | 4 | |
Times of making-breaking with the rated short-circuit current | Times | 30 | |
Mechanical life | M2 level | ||
Weight | kg | 350 |
1.2 Mechanical parameters
Item | Unit | Reference value |
Gap of contacts | mm | 20±2 |
Contact overtravel | mm | 6±1 |
Average making speed | m/s | 0.6±0.2 |
Average breaking speed | m/s | 1.5-2.0 |
Bounce time in contact making | ms | ≤3 |
Non-synchronous making/breaking of contact | ms | ≤2 |
Resistance of the circuit of each phase | μΩ | ≤80 |
Permissible total wear thickness of the movingfixed contact | mm | 3 |
Standard | 1.IEC 62271-100 High-voltage aternatingcurrent crcuit-reakers3.6 kV and less than 40.5 kV 2.GB/T 11022-2011 Common specifications for high-voltage switchgear and controlgear standards 3.GB 1984 High-voltage ateratingcrrent crcuitbreakers 4.GB 311.1 Insulation co-ordination for high voltage transmission and distribution equipment
|
Operating conditions | 1. Ambient temperature: - 40℃-+40℃ (below 35℃ within 24 hours) 2. Relative humidity:≤95% (daily average) or≤90% (monthly average) 3.Altitude: ≤1000m |
