CAPG-C1 Good Electrical Contact Aluminium Parallel Groove Connector PG Bimefallic Clamp
CAPG-C1 Good Electrical Contact Aluminium Parallel Groove Connector PG Bimefallic Clamp
CAPG-C1 Good Electrical Contact Aluminium Parallel Groove Connector PG Bimefallic Clamp

CAPG-C1 Good Electrical Contact Aluminium Parallel Groove Connector PG Bimefallic Clamp

  • Item No.CAPG-C1
    MOQ10 Piece
  • Size39 x 22 x 16
    Weight0.17
Tag  wholesale

Available Options

Color
Type

Quantity:

From $ 1.251.211.15  / Piece
$ 12.50
You save  $  -12.50
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberCAPG-C1
MaterialAluminium
UsageHeavy Duty
MOQ100
TypeBolts type
Applicationconnect two parallel bare conductors
Standard or NonstandardStandard
Measurement systemMetric
StructureG Clamp


 Description

 CAPG-C1 Type Aluminium and Copper Bolts Bimetallic PG Clamp



Feature

 Pressure pad ensures pressure along the clamp evenly, Parallel groove clamp has high mechanical pullout   strength and good electrical contact.









Material

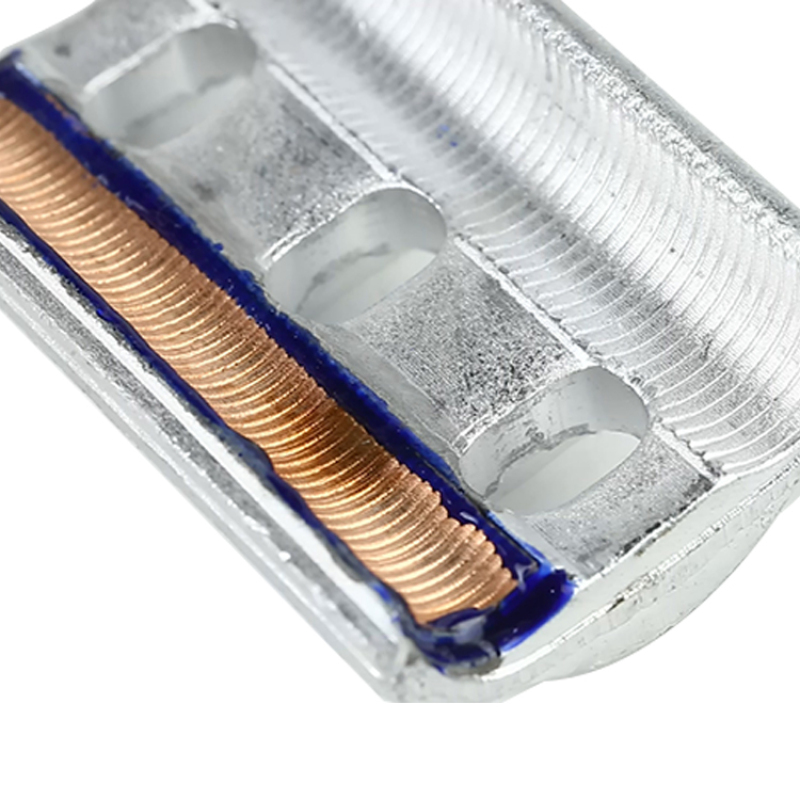

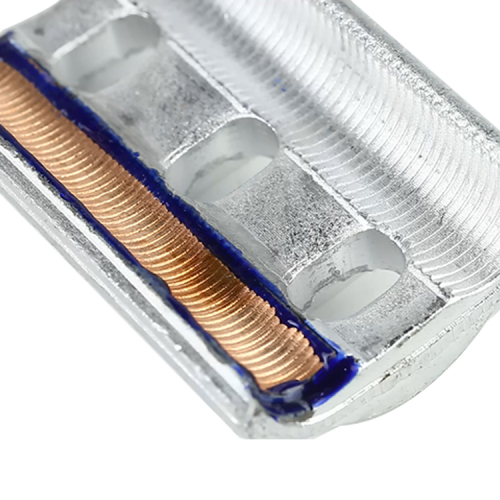

 Connector bodies made of corrosion resistant, high strength aluminum alloy 99.5 with hot forged   bimetallic   sheet.

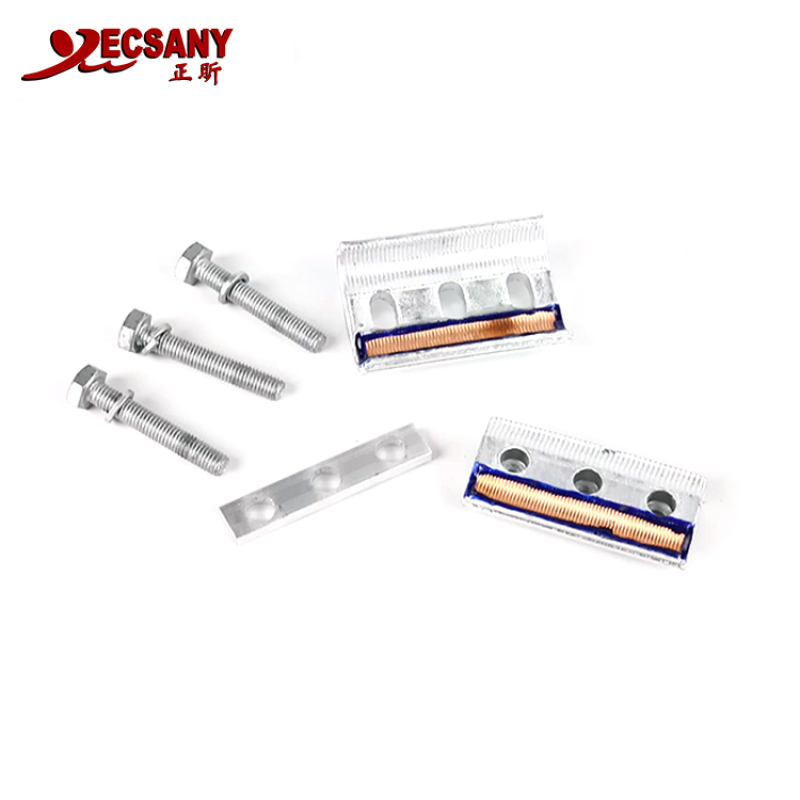

 Bolts: DIN 933, Grade 8.8, dacromet plated; Nut: DIN934, dacromet plated, pressed into lower part of PG   clamp Pressure pad: aluminum alloy; Spring washer: DIN127, steel
 Spring washers: Steel, DIN6796 corrosion-protected, dacromet plated
 Stainless steel bolts and nuts are available according to the firm order.

 Type and Size

 General type and size or according to customer's drawing or   sample



Application

 Suitable to connect two parallel bare conductors. Conductors   can be aluminum alloy or aluminum steel   reinforced and copper conductor.





TypeConductor RangeNo. x Bolts
CAPG-A1Cu 6-50 mm² , Al 16-70 mm²1 x M8
CAPG-A2

Cu 10-95 mm² , Al 25-150 mm²

Cu 10-95 MM, AL 16-150 MM

1 x M8
CAPG-B1Cu 6-50 mm² , Al 16-70 mm²2 x M8
CAPG-B2

Cu 10-95 mm² , Al 25-150 mm²

Cu 10-95 MM, AL 16-150 MM

2 x M8
CAPG-B3

Cu 25-185 mm² , Al 25-150 mm²

CU 16-185 MM, AL 35-240 MM,

CU 16-185 MM, AL 25-200 MM

2 x M10
CAPG-C1Cu 6-50 mm² , Al 16-70 mm²3 x M8
CAPG-C2

Cu 10-95 mm² , Al 25-150 mm²

CU 10-95 MM, AL 25-150 MM

3 x M8
CAPG-C3Cu 25-185 mm² , Al 35-240 mm²3 x M10
CAPG-C4Cu 35-240 mm² , Al 35-300 mm²3 x M10
