APG-B3 High Mechanical Pullout Strength Adjustable Connector Aluminum PG Clamp

Message

$1.37

Have chosenThere are no options selected.

*Color
*Type
Start To Order

Add To Cart Successfully!

APG-B3 High Mechanical Pullout Strength Adjustable Connector Aluminum PG Clamp
APG-B3 High Mechanical Pullout Strength Adjustable Connector Aluminum PG Clamp
APG-B3 High Mechanical Pullout Strength Adjustable Connector Aluminum PG Clamp

APG-B3 High Mechanical Pullout Strength Adjustable Connector Aluminum PG Clamp

  • Item No.APG-B3
    MOQ10 Piece
  • Size39.5 x 23.5 x 22.5
    Weight0.28
Tag  wholesale

Available Options

Color
Type

Quantity:

From $ 1.371.321.22  / Piece
$ 13.70
You save  $  -13.70
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberAPG-B3
MaterialAluminium
UsagePipe Clamp
MOQ100
Standard or NonstandardStandard
Measurement systemMetric
StructureT Clamp


 Description

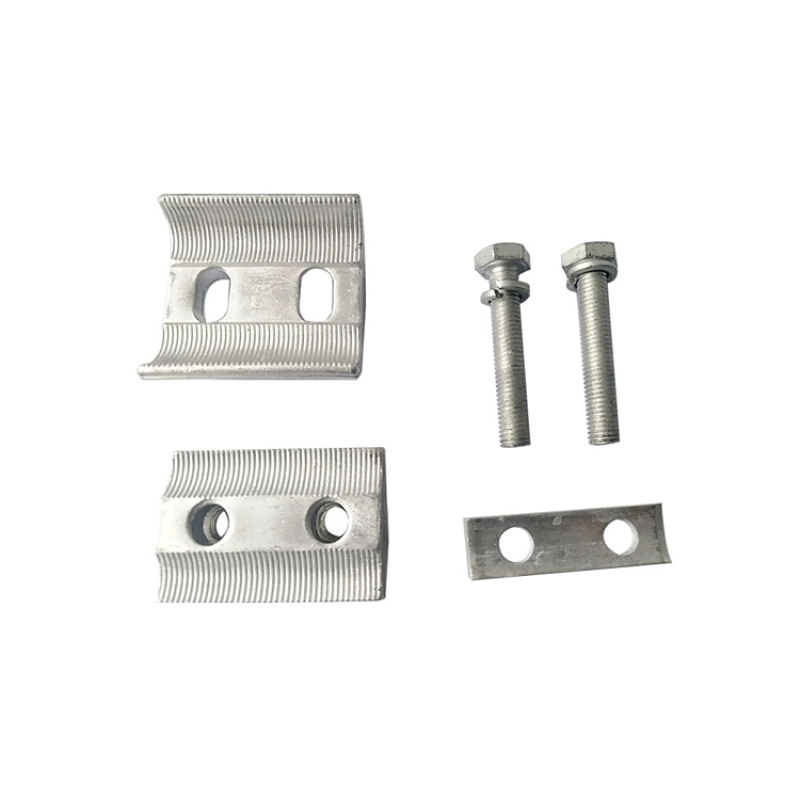

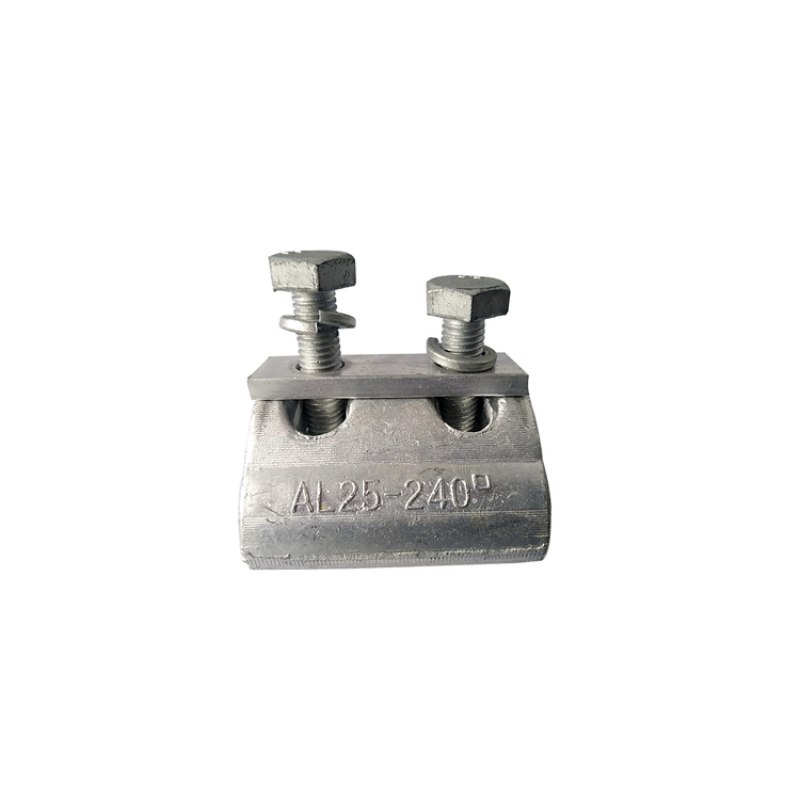

 APG-B3 Type Aluminium Bolts Bimetallic PG Clamp

 Feature

 Pressure pad ensures pressure along the clamp evenly, Parallel   groove clamp has   high mechanical pullout strength and good   electrical contact.

 Material

 Connector bodies made of corrosion resistant, high strength aluminum   alloy 99.5
 Bolts: DIN 933, Grade 8.8, dacromet plated; Nut: DIN934, dacromet   plated, pressed   into lower part of PG clamp
 Pressure pad: aluminum alloy; Spring washer: DIN127, steel
 Spring washers: Steel, DIN6796 corrosion-protected, dacromet plated
 Stainless steel bolts and nuts are available according to the firm order.

 Type and Size

 General type and size or according to customer's drawing or   sample

 Application

 Suitable to connect two parallel bare conductors. Conductors   can  be aluminum alloy   or aluminum steel reinforced and copper   conductor.


APG-B3-PG Clamp.jpg

Type

Conductor Range

No. x Bolts

APG-A1

Al 16-70 mm²

1 x M8

APG-A2

AL 16-150 mm²

1 x M8

APG-B1

Al 16-70 mm²

2 x M8

APG-B2

AL 16-150 mm²

2 x M8

APG-B3

AL 25-240 mm²

2 x M10

APG-C1

AL 16-70 mm²

3 x M8

APG-C2

AL 16-150 mm²

3 x M8

APG-C3

AL 25-240 mm²

3 x M10

APG-C4

AL 35-300 mm²

3 x M10





Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
