Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberZN85-40.5
Materialstainless steel or hot-dip galvanized steel.
MOQ10
TypeVacuum Circuit Breaker
Product NameVacuum Circuit Breaker
altitude≤1000m
ambient temperature-40°C-+40°C
Product Description




     ZN85 axiliary handcart designed and produced by us has a screw rod drive mechanism and can be moved easily and avoid damage of the drive mechanism due to misoperation. It applies to the 50Hz and 40.5kV three-phase alternating-current single-bus segmented power systems in KYN61-40.5 armored mobile metllic metal-enclosed switchgears. Used with different primary components, it can realize bus connection, electric energy measurement, and overload protection or short-circuit protection for power equipment and, during system overhauls, functional component and interlocking.


Overall and Installation dimension

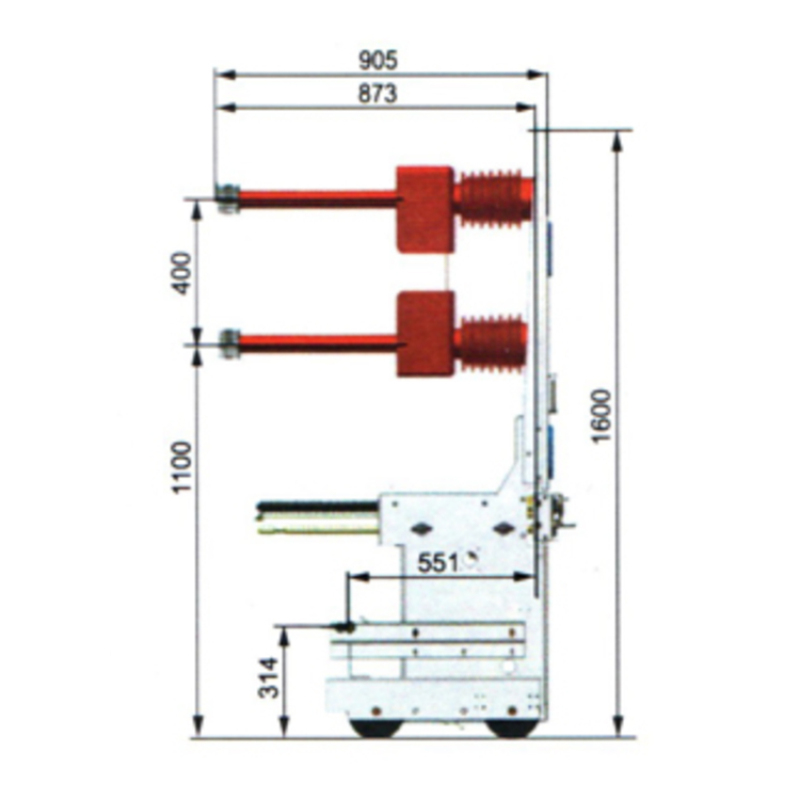

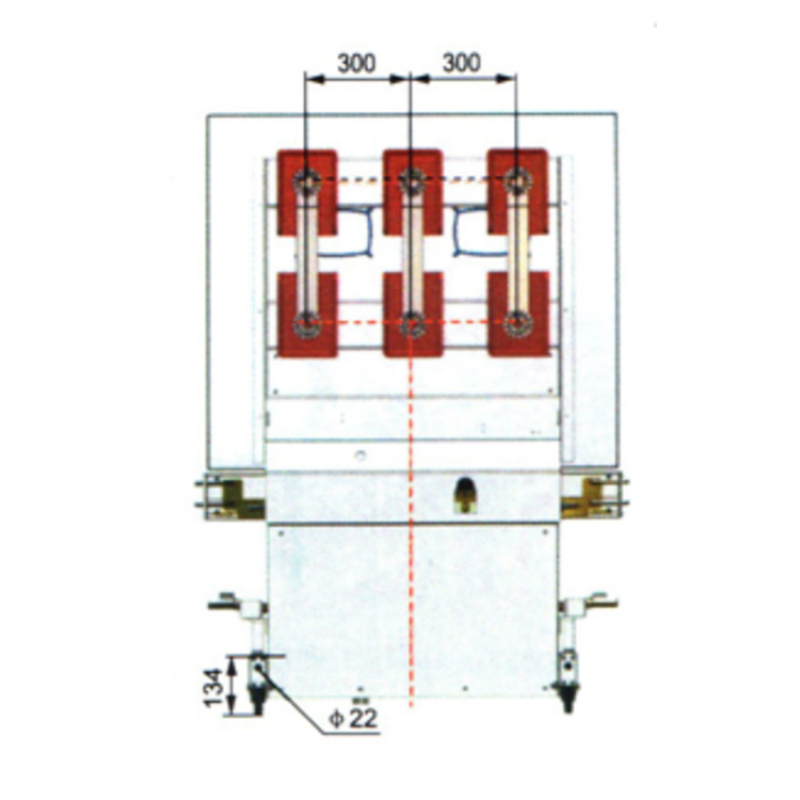

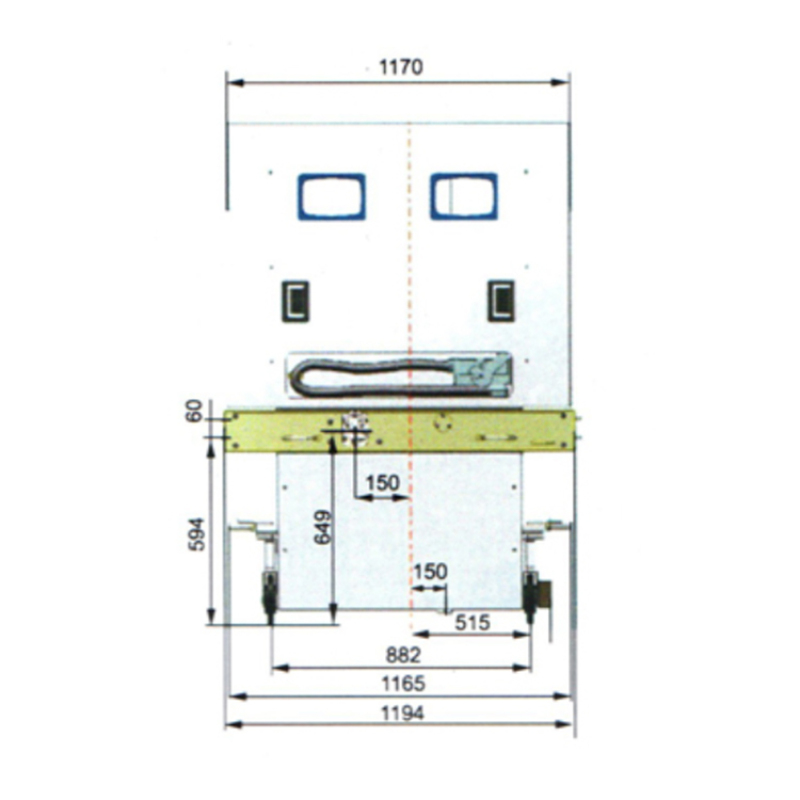

Overall dimension of ZN85-40.5 isolating handcart(cabinet width: 1400mm)

20191016163540314031 - .jpg





 Technical Parameter

1.1 Technical parameters

ItemUnitReference value
Rated voltagekV40.5
Rated insulation levelLightning impulse withstand voltagekV185
1min power-frequency withstand voltagekV95
Rated frequencyHz50/60



1.2 Drawing of linkage between the moving contact and the fixed contact



Standard

1.GB/T 11022-2011 Common specifications for high-voltage switchgear and controlgear standards

2.IEC 62271-2007 High-voltage switchgear and controlgear - Part 1: Common specifications



Operating conditions

1. Ambient temperature: - 40℃-+40℃ (below 35℃ within 24 hours)

2. Relative humidity:≤95% (daily average) or≤90% (monthly average)

3.Altitude: ≤1000m
