33KV Glassfiber Epoxy Core Rod Polymer String Pin Tension Insulator
33KV Glassfiber Epoxy Core Rod Polymer String Pin Tension Insulator
33KV Glassfiber Epoxy Core Rod Polymer String Pin Tension Insulator
33KV Glassfiber Epoxy Core Rod Polymer String Pin Tension Insulator
33KV Glassfiber Epoxy Core Rod Polymer String Pin Tension Insulator

33KV Glassfiber Epoxy Core Rod Polymer String Pin Tension Insulator

  • Item No.Pin Insulator
    MOQ300 Piece
Tag  sourcing

Quantity:

From $ 25.00  / Piece
$ 7,500.00
You save  $  -7,500.00
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberPin Insulator
MaterialComposite Polymer
MOQ300
TypeInsulator
ApplicationHigh Voltage
Rated Voltage11kV-33KV
Tensile Strength4KN-10KN

  Application:



 Normal service conditions:

  1.The ambient temperature: -40°C ~+40°C

 2.The altitude above sea level :not exceed 1000-2000m (the altiplano area should be indicated when order)

 3.Earthquake intensity: not higher than 7 degrees;

 4.Maximum wind velocity :less than 35m/s.

 5.The filthy area should be given clear indication.



 Feature:

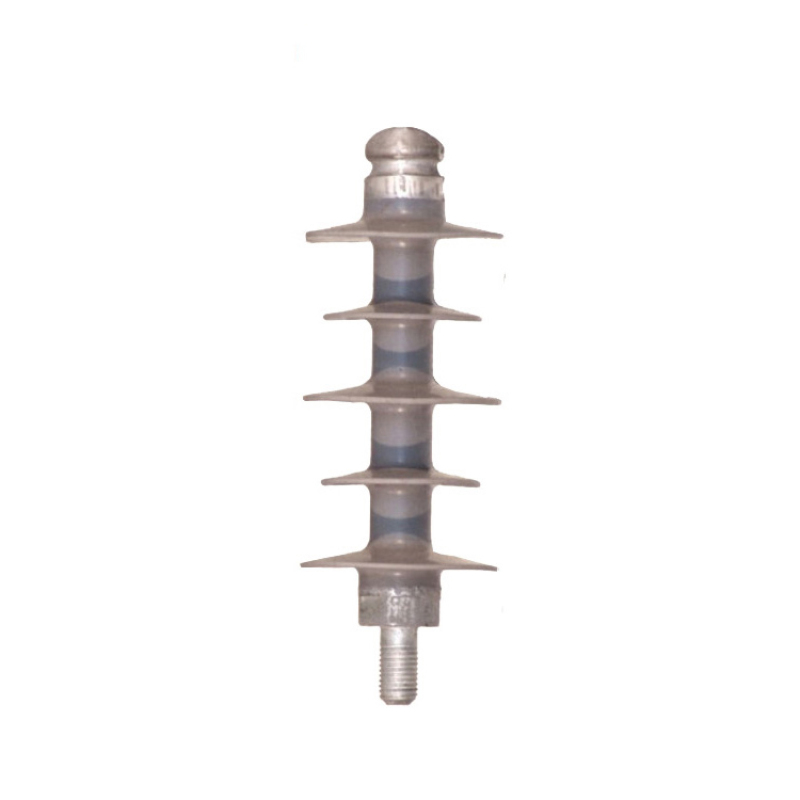

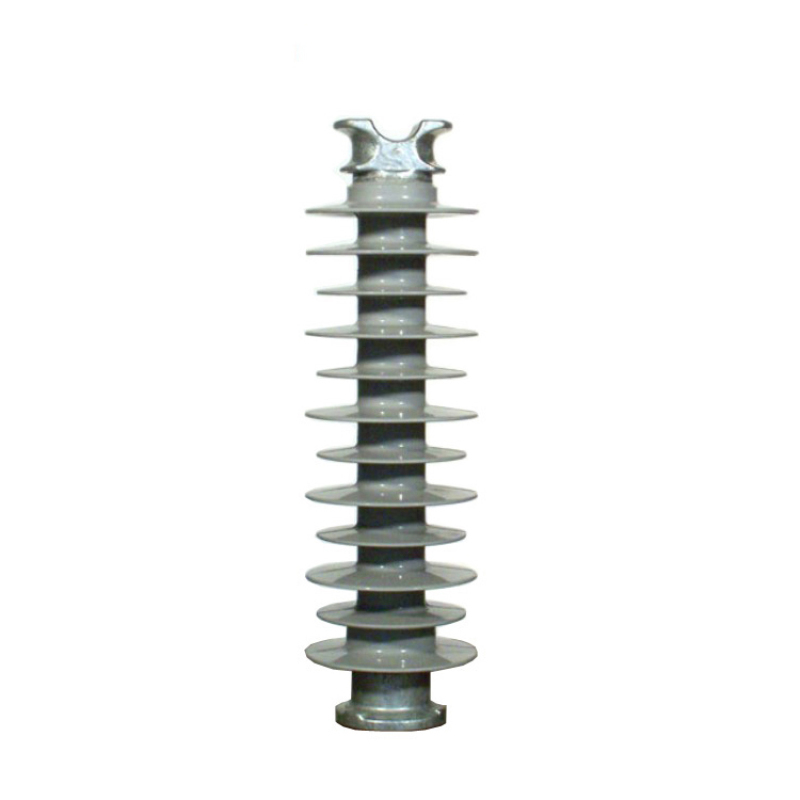

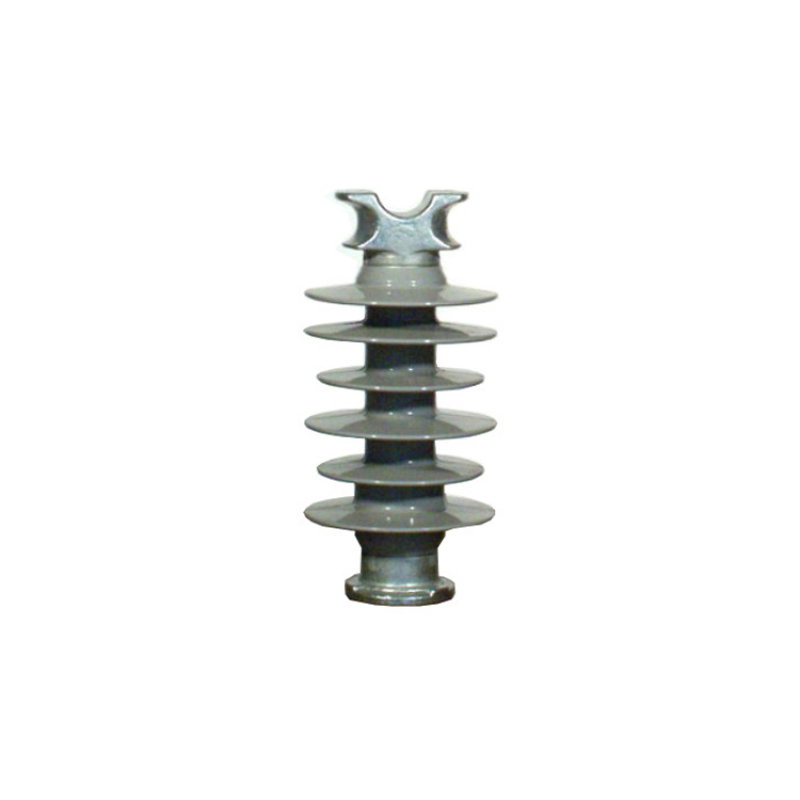

 The Pin Type Polymer Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.



 The silicon rubber sheds adopt the whole packing pressure technique, and then to solve the key   problem – interface electric spark puncture, which would affect the reliability of composite insulator.



 Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the   international advanced level, and have the full automatic sound wave detection of defects system, high   intension, beautiful outline, small volume, light weight, and the metal fitting with galvanization can   prevent corrosion, and more and more polymer insulators replace the porcelain insulators.



 This product is reliable structure, can’t damage the FRP rod, and take full advantage of the       mechanical strength.

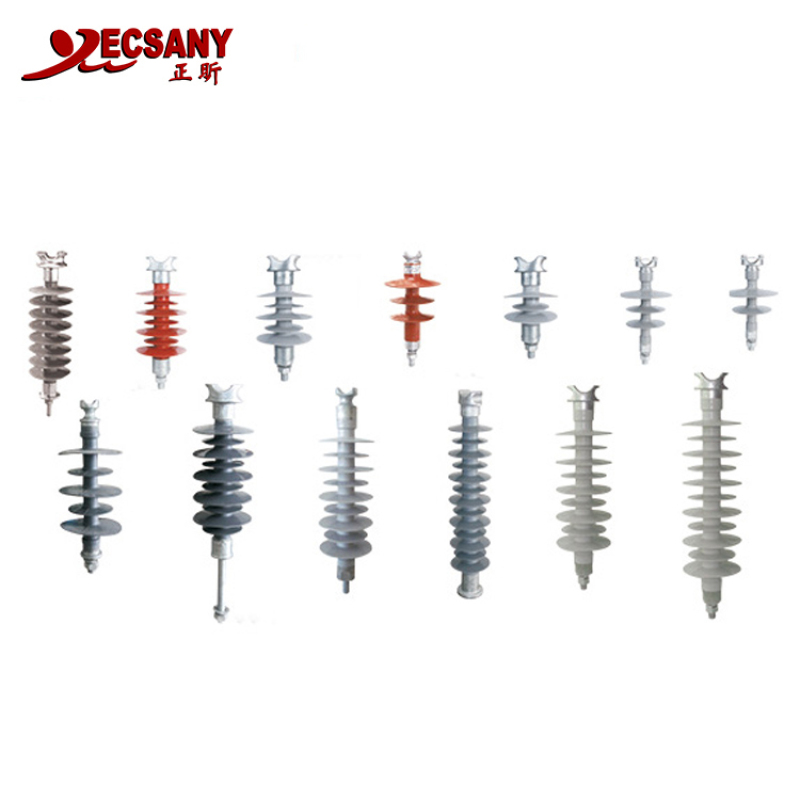

Pin Insulators -.jpg


Technical Parameters:

Description

Unit

10KV 4KN

10KV 5KN24KV 6KN

36KV 8KN

52KV 12KN

 Rated voltage

KV

10

1024

36

52

 Specified Bending Load

KN

4

56

8

12

 Creepage Distance

mm

280

42071510001255

 Arcing Distance

mm

125

165255

320

415

 Structure Height

mm

215

250305

440

480

 Lighting impulse withstand Voltage

KV

75

105150

185

220

 1 min Wet Power Frequency withstand Voltage

KV

42

4275

95

110



Note: Customized products are available, but need to provide more detail.





Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.

Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.

Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.

Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.

Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
