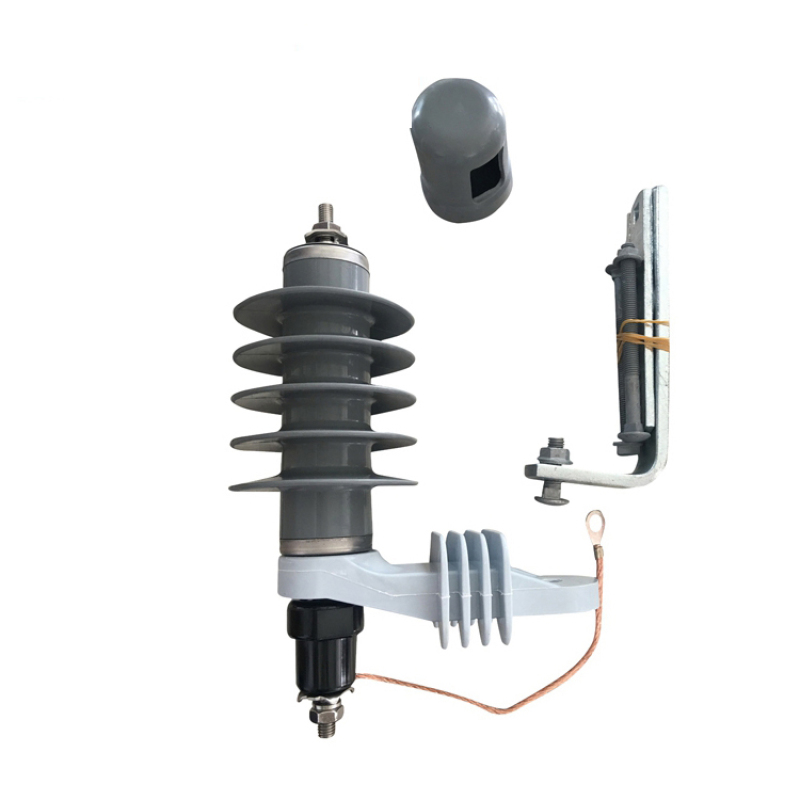

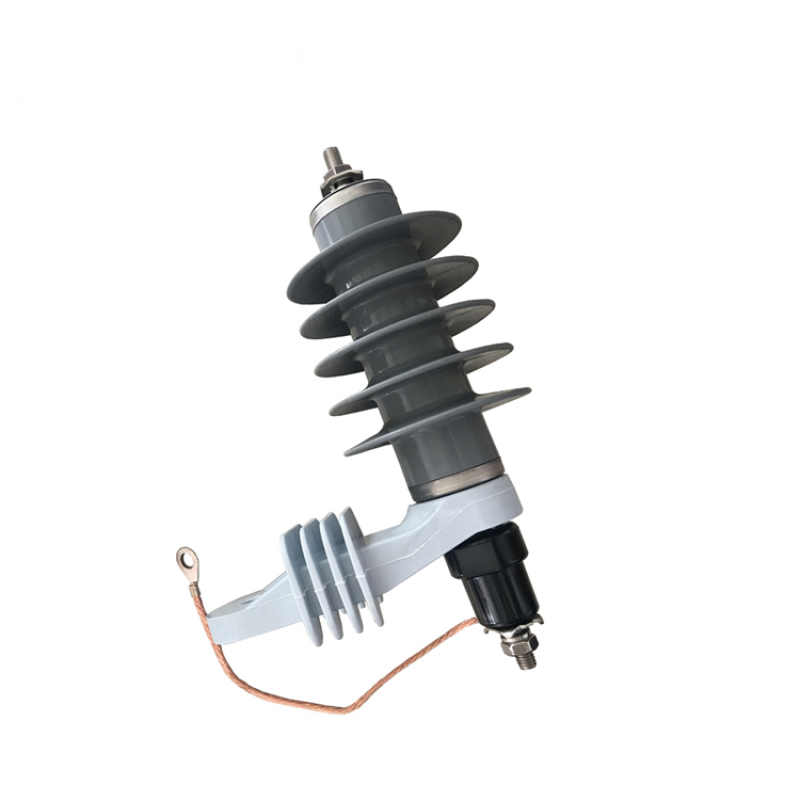

12kv Outdoor Electrical Equipment Metal Oxide Lightning Surge Arrester
≥200 Piece
$95.00
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
| Quick Details | |
| Place of Origin | CN;ZHE |
| Brand Name | Jecsany |
| Model Number | YH5W-12 |
Technical Parameters:
Description | Unit | Value. |
Rated voltage | KV | 12 |
Nominal discharge current | KA | 5 |
Rated AC system frequency | Hz | 50 / 60 |
Continuous operating voltage(rms) | KV | 10.2 |
1/4μs steep current impulse (crest) | KV | 42.2 |
8/20us Lighting impulse residual voltage(crest) | KV | 36 |
30/60us Swithcing current impulse | KV | 30.8 |
Rectangular current withstand 2ms | A | 150 |
4/10us High current impulse withstand(crest) | KA | 65 |
Leakage/Creepage Distance | mm | 460 |
Normal service conditions:
1.The ambient temperature: -40°C ~+40°C 2.The altitude above sea level :not exceed 1000-2000m (the altiplano area should be indicated when order) 3.Earthquake intensity: not higher than 7 degrees; 4.Maximum wind velocity :less than 35m/s. 5.The filthy area should be given clear indication.
|
Feature:
The zinc oxide surge arrester is the most advanced over-voltage protector in the world. Due to make the resistor disc of core component mainly adopt zinc oxide arrester. Compared with the conventional siliconcarbide arrester, this prescription of the product improves greatly the volt-ampere characteristics of the resistor disc and increase through- current capability at over-voltage so as to bring a rad local-changes for the characteristics of the arresters.
|
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
| Business Type | Trading Company | Country / Region | Zhejiang, China |
| Main Products | Cable Accessories,Surge Arresters,Fuse Cutouts,Isolates Switches,Reclosers | Total Employees | 5 - 10 People |
| Total Annual Revenue | confidential | Year Established | 2017 |
| Certifications | ISO9001 | Product Certifications | |
| Patents | Trademarks | ||
| Main Markets | Africa 46% South America 30% Domestic Market 10% | ||
JECSANY has been thrived on supplying the products according to the international standard such as 61952, IEC 61109, IEC 60099-4, IEC 60282-2, etc. With scientific administration, professional engineers, highly trained technicians and skilled workers, JECSANY is capable to produce more than 2 million units of the main electrics in best quality annually, almost all of its products have been made for overseas markets and well sold to USA, South Africa, Vietnam, Korea, South America, South Asia etc. over 50 countries worldwide. Some of its products have already been granted IEC certificates and have won high reputation around world market.
In order to meet new challenge and satisfy increased customers' demand on our products and quality, JECSANY will consistently keep on updating and developing more products for new and old clients. We are looking forward to your mutual cooperation and support as usual .
