12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links

Message

$0.47

Have chosenThere are no options selected.

Start To Order

Add To Cart Successfully!

12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links
12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links
12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links
12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links
12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links
12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links
12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links

12-27kv Length 584mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links

  • Item No.K TYPE
    MOQ30 Piece
  • Size16 x 2 x 1.5
    Weight0.02
Tag  wholesale

Quantity:

From $ 0.470.460.45  / Piece
$ 14.10
You save  $  -14.10
Trade Assurance protects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Place of OriginCN;ZHE
Brand NameJecsany
Model NumberK TYPE
UsageHigh Voltage
MOQ30
Breaking CapacityHigh
Safety StandardsIEC
TypeK Type
ColorAs Photo Or Customized


12-27kv Length 5mm 1A Various Removable Button Head K Type Fuse Elements Fuse Links






Meet all applicable Standards ANSI/NEMA

JEC Type K and Type T fuse links are made in complete accordance with standards ANSI/NEMA. Other links meet all the standards except those covering time-current characteristics. Time-current characteristics for links other than K and T links are not covered in the ANSI standards.



Precision — The standard of JEC fuse links

JEC fuse links assure system protection because they are precision manufactured. The fusible materials used in JEC Fuse Links are under continual control during manufacture. Pre-tested to guarantee their electrical values, these materials are held to precise tolerances. At critical points during the manufacturing process, rigid inspections are made.



Packaging

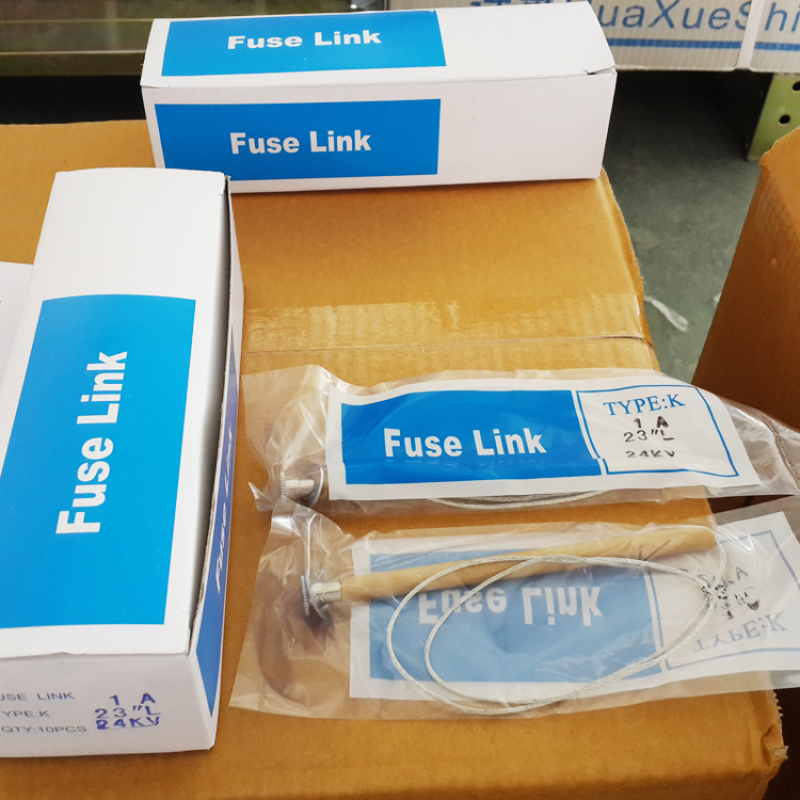

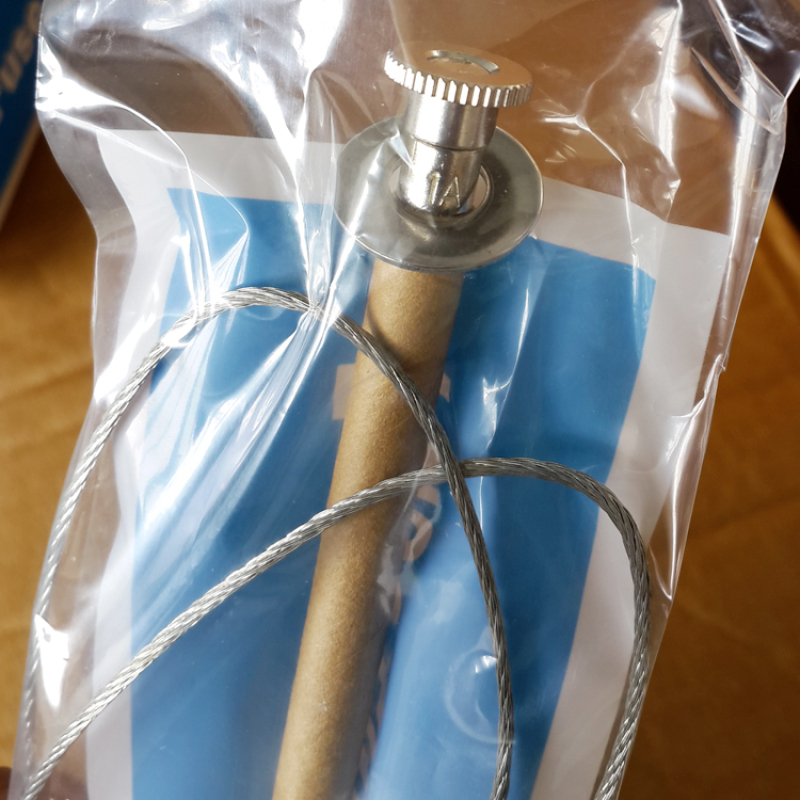

JEC fuse links come in protective plastic bags with perforations to facilitate quick, easy opening even when lineman’s gloves are worn. Each bag remains completely sealed for all-weather protection and keeps the links protected in the line truck’s bins.

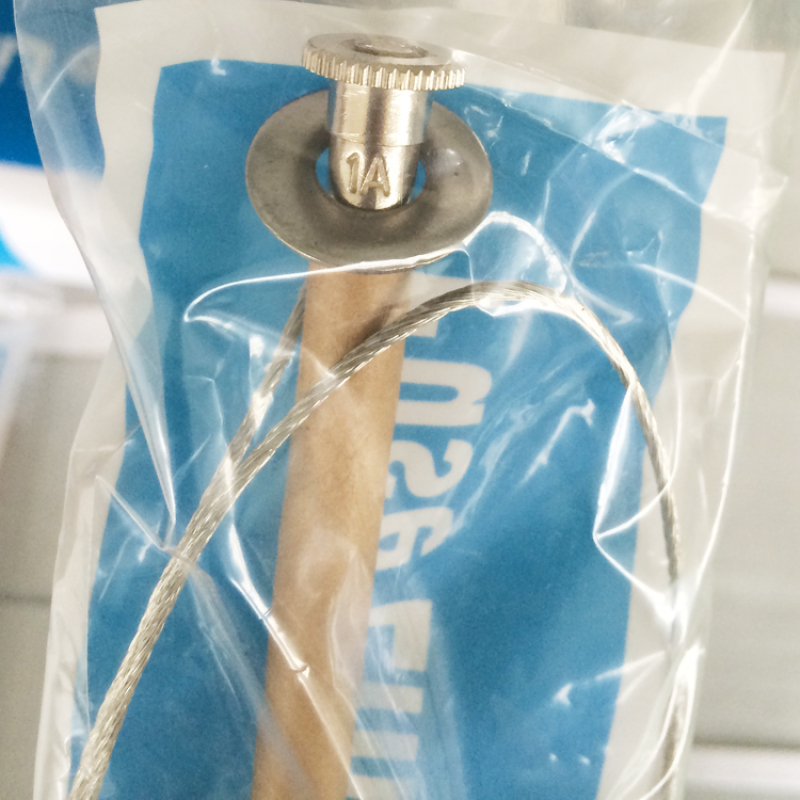

Type and amperage is printed on each bag, for easy identification.



Fuse Link K 1A-584.jpg



Materials used

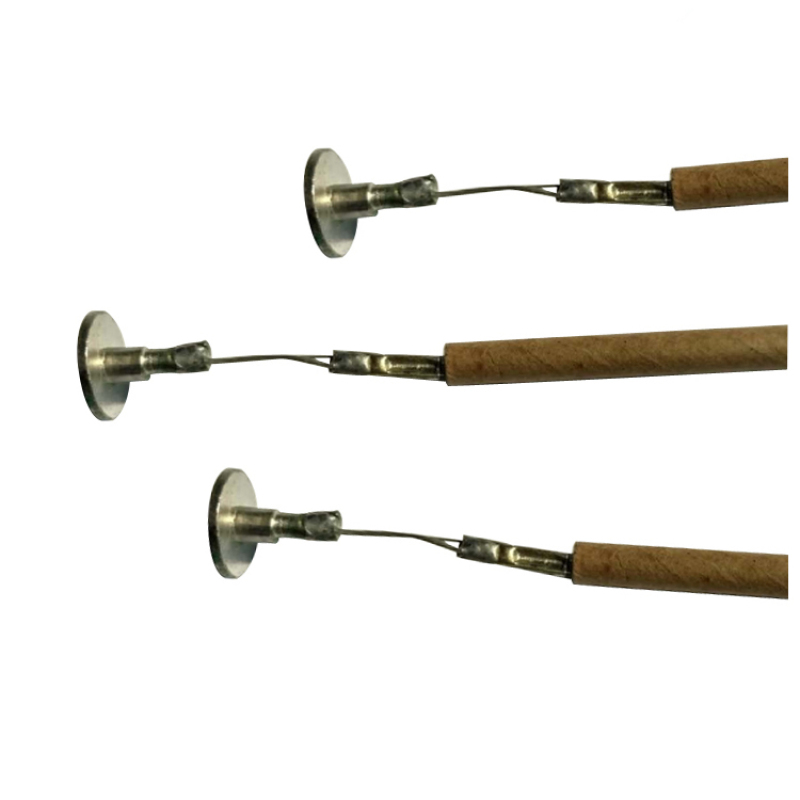

The fusible section of the 1 through 3 ampere Type K links consist of a stainless-steel fuse strain wire; the 6 through 10 ampere, stainless-steel strain wire and a copper-alloy fuse wire; 12 through 100amperes, a stainless steel strain wire and a silver-copper fuse wire; 140 and 200 ampere, a silver -copper fuse wire large enough to serve as both strain and fuse wire.



Application

The fast characteristics of Type K fuse links were established by ANSI/NEMA to provide fuse links that would meet existing coordination schemes.

JEC Type fuse links are designed to carry 150% of their rated current without damage to the fuse link itself or the cutout in which it is installed.

This capacityis for special loading situations, such as shorttime over loads and cold load pick-up.



Button head and length

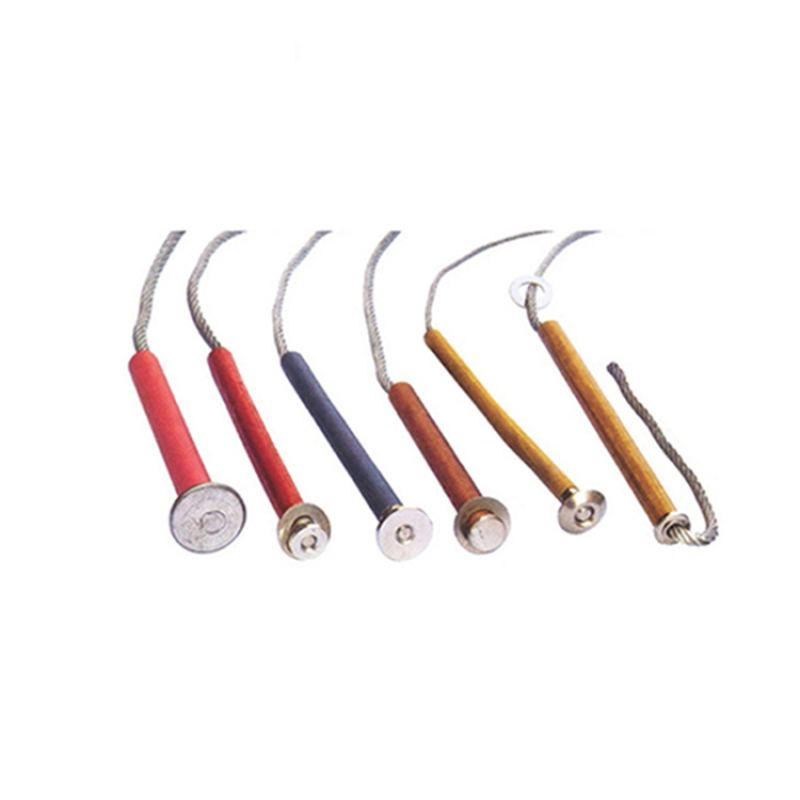

Conforming to all applicable ANSI/NEMA specifications, JEC Type Klinks are available with a removable or solid button head.

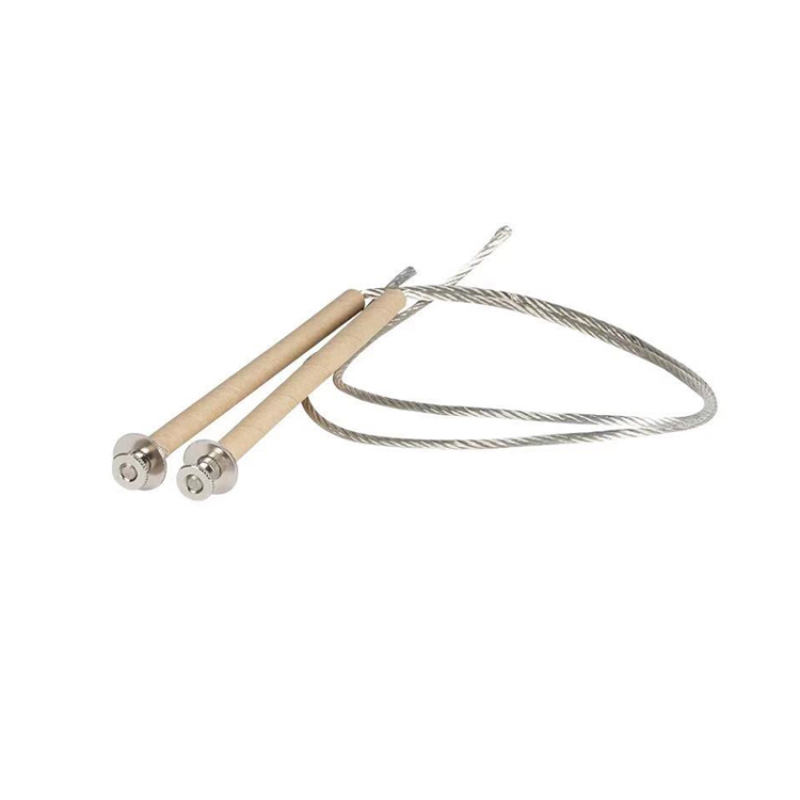

Twin Pigtail Type K fuse links

The twin pigtail fuse link is convenient to work with and easier to install in the cutout than conventional single pigtail fuse links. The pigtails attach under the clamp with one on each side of the attachment stud.




Fuse Link-4

 Technical Parameter Table

 Melting Speed Ratio

 T type: 10~13 ;  K type: 6~8

 Rated Current

 1, 2, 3, 5, 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 65, 75, 80, 100, 120, 140, 200A

 Standard

 IEC 60282-2

 Environmental   Conditions

 Ambient Temperature: -30 - +40

 Altitude: 3000m

 Frequency: 50Hz / 60Hz

 Maximum Wind Speed: 35m/s



Fuse link Draw.jpg



 Technical Parameter Table 2

Rated current (A)

Dimensions (mm)

A

B

C

D

F

1-25

12.5±0.2

19.0 ± 0.2

12/24KV: 530-600

36KV: 787

2

6.5

30-40

12.5±0.2

19.0 ± 0.2

3

8.0

50-100

19.0±0.3

not applicable

5

10.0

120~200

19.0±0.3

not applicable

7

12.0
